MaterialGAN: Reflectance Capture using a Generative SVBRDF Model
Supplemental Materials
Yu Guo1, Cameron Smith2, Miloš Hašan2, Kalyan Sunkavalli2, and Shuang Zhao1
1University of California, Irvine
2Adobe Research
Real Data (Detailed Comparisons)
We show detailed comparisons of Gao19 and our technique using real measurements in the following.
Methods marked as "+" are initialized with Deschaintre19's direct predictions; those without "+" are obtained using the better of two constant initializations.
We also show the result with and without post-refinement, for both our and Gao19 results. The lowest and second lowest LPIPS values in each column are marked in green and orange, respectively.

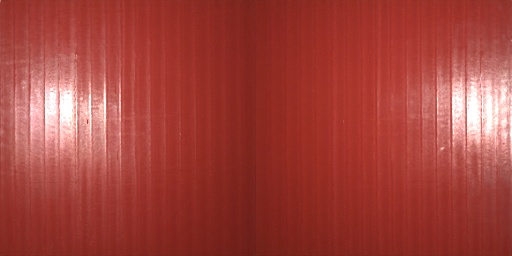

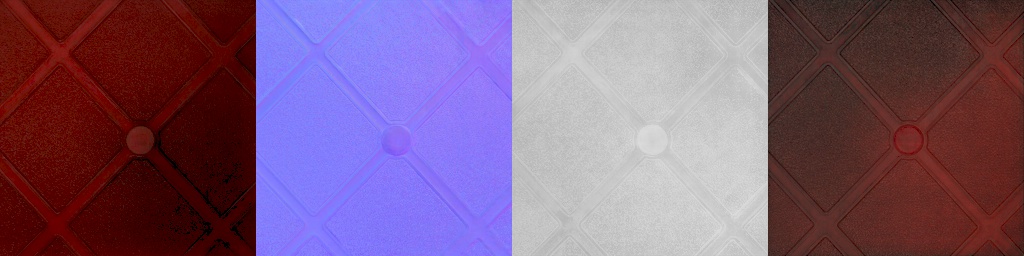

plastic-red-carton
Remark:
In this example, all versions of our method (with or without initialization or refinement) give a
fairly clean result, while all versions of Gao19 produce artifacts in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.

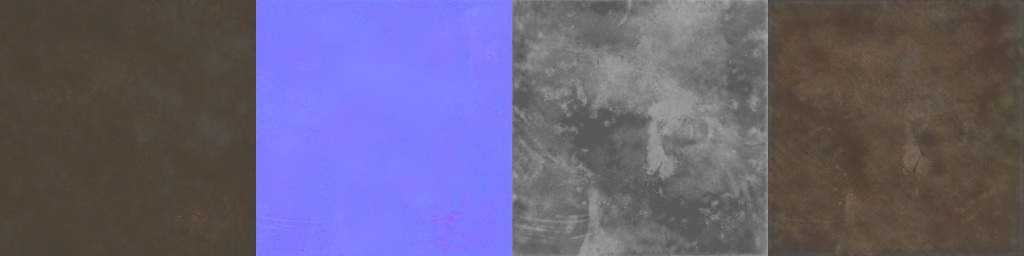

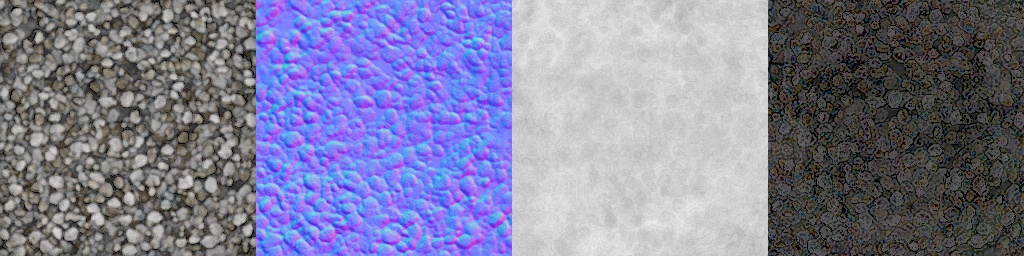

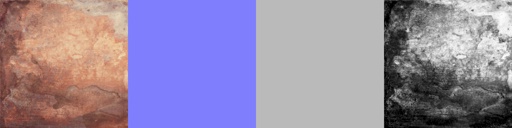

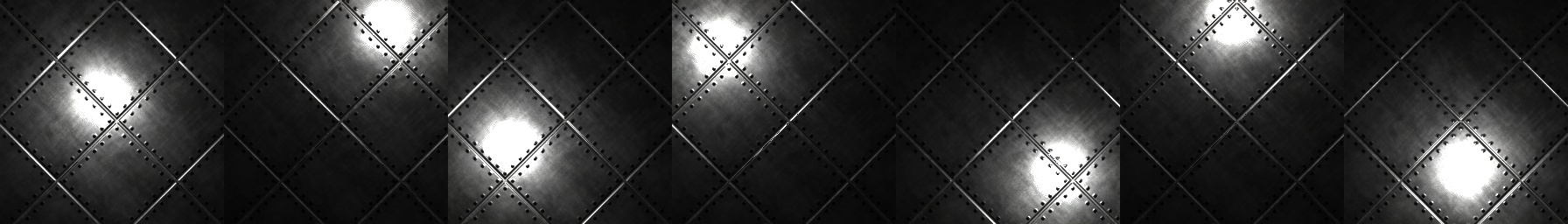

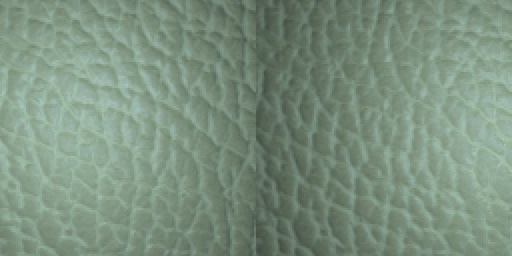

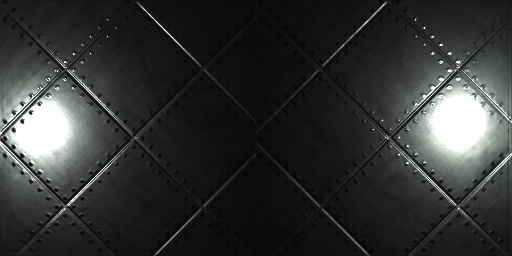

| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
[Gao19]
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.364 |
Ours
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.123 |
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.187 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.095 |
|
[Gao19]+
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.229 |
Ours+
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.115 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.166 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.095 |

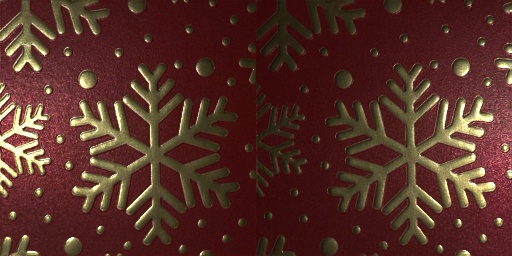

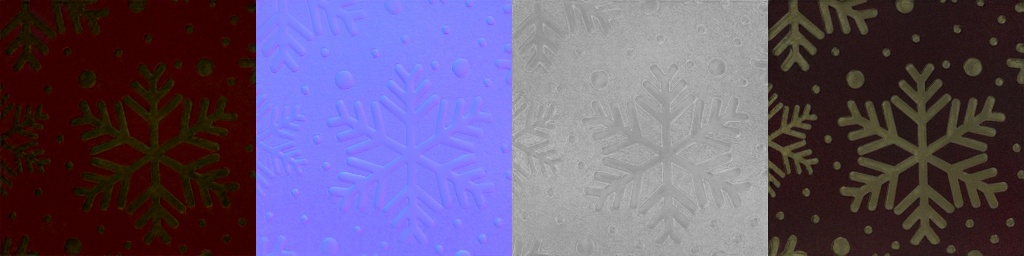

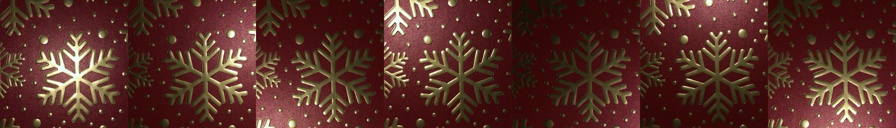

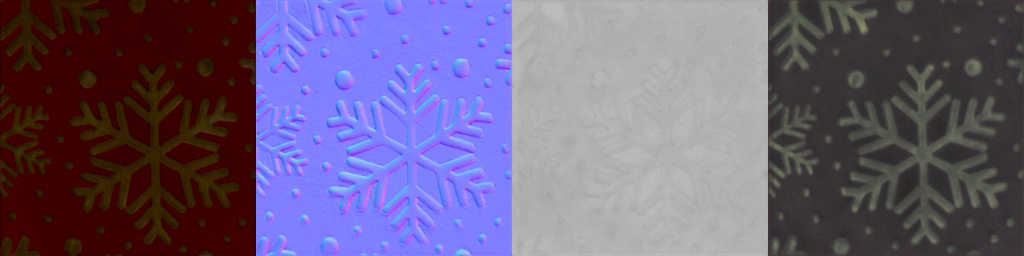

cards-red
Remark:
On this Christmas card example with colorful specular coefficient variation, both methods perform reasonably
well. Our method has somewhat better LPIPS scores, with or without initialization.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
[Gao19]
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.377 |
Ours
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.073 |
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.096 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.059 |
|
[Gao19]+
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.310 |
Ours+
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.103 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.092 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.061 |

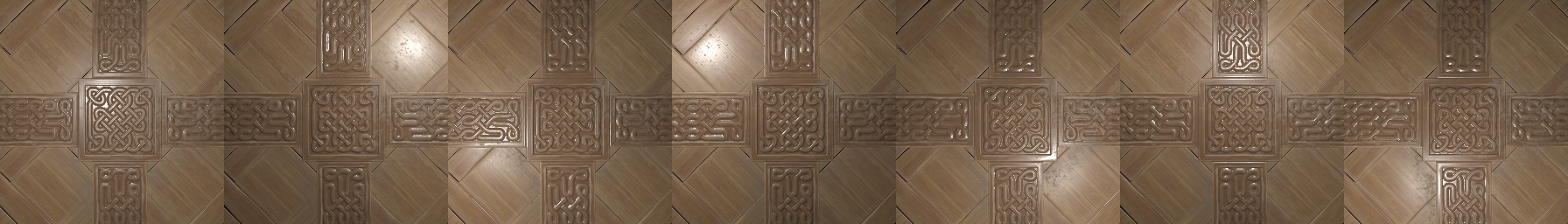

wood-tile
Remark:
In this example, all versions of our method (with or without initialization or refinement) give a
fairly clean result, while all versions of Gao19 produce artifacts in roughness and specular maps.
While the LPIPS scores for Gao19 with refinement are good, the maps are clearly worse than ours.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
[Gao19]
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.600 |
Ours
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.295 |
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.193 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.202 |
|
[Gao19]+
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.489 |
Ours+
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.204 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.192 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.164 |

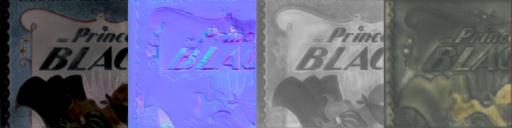

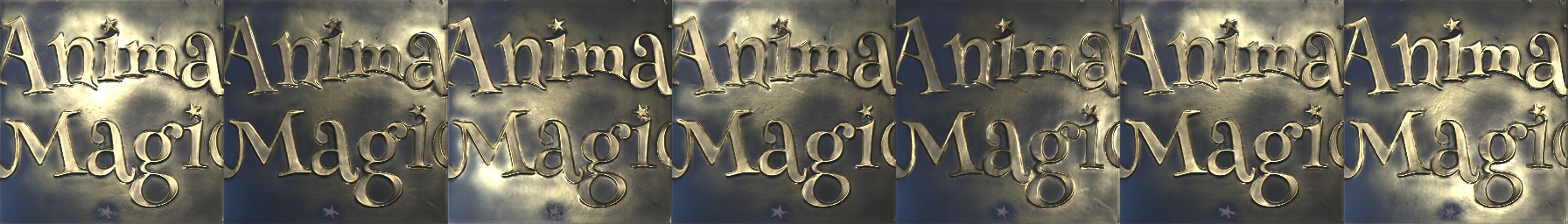

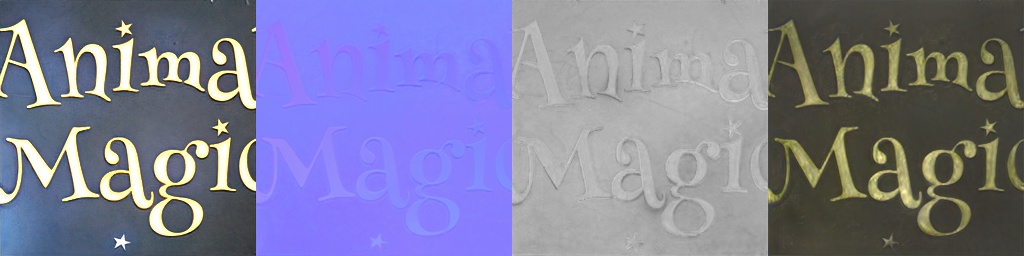

book1
Remark:
This example is difficult for all methods, due to sharply segmented materials and layered BRDFs that
do not match the simple microfacet model well. None of the methods can closely match the novel lighting.
Our method without initialization produces cleanly segmented
maps and also correctly estimates the normal as mostly flat; its LPIPS score is also best.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
[Gao19]
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.396 |
Ours
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.213 |
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.264 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.147 |
|
[Gao19]+
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.418 |
Ours+
no refinement |
 |
 |
 |
|
| | | | | |
LPIPS:
0.286 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.318 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.235 |
Real Data
We now show real examples generated using Gao19 and our technique. Methods marked as "+" are initialized with Deschaintre19's direct predictions;
those without "+" are obtained using the better of two constant initializations.
The lowest and second lowest LPIPS values in each column are marked in green and orange, respectively.

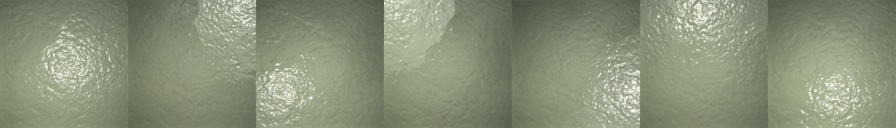

wall-plaster-green
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.315 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.199 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.271 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.187 |

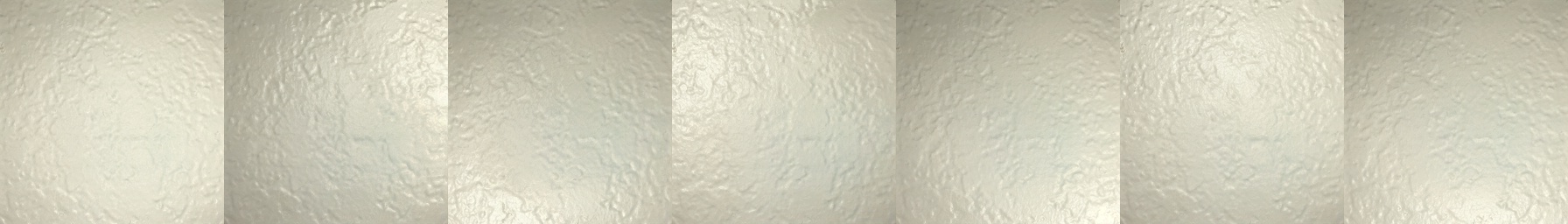

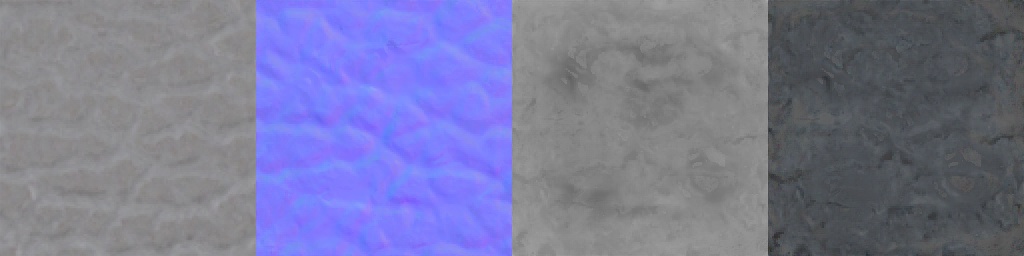

wall-plaster-white
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.238 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.071 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.132 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.089 |

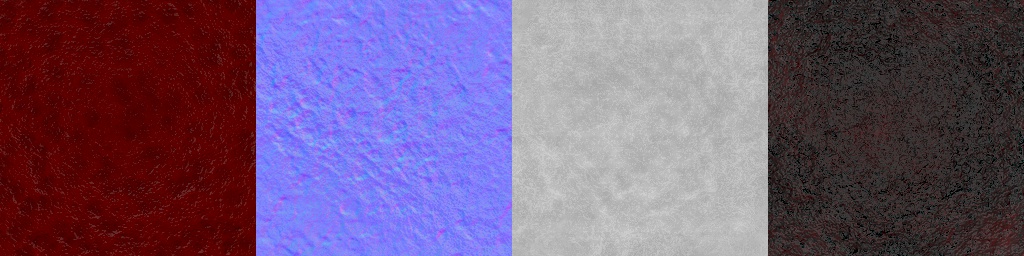

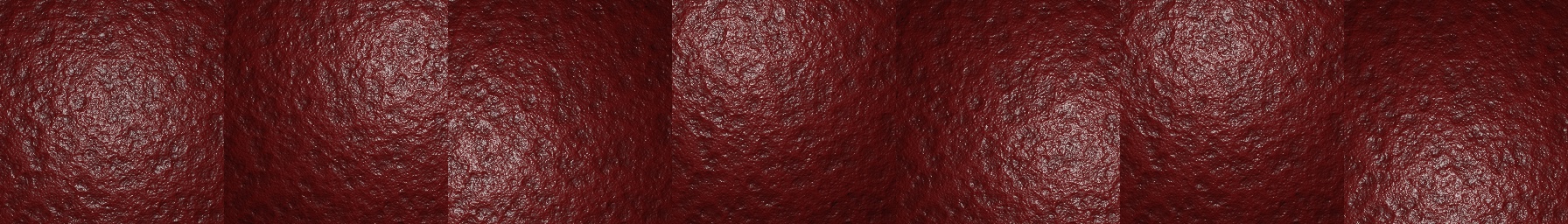

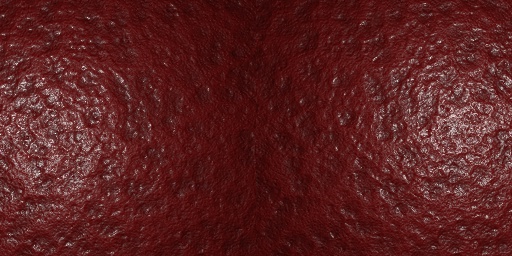

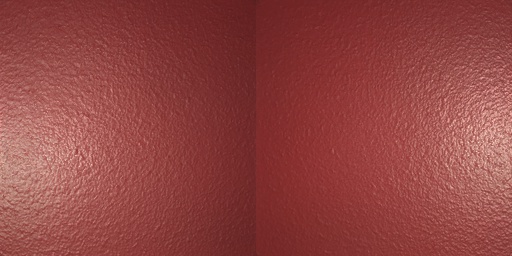

wall-red-bump
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.090 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.060 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.090 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.058 |

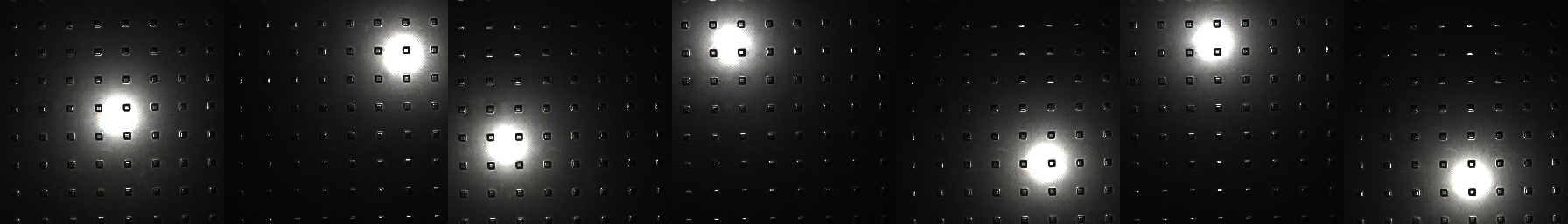

plastic-foam
Remark:
All methods perform similarly in map quality. Our methods have lowest LPIPS scores.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.132 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.076 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.123 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.060 |

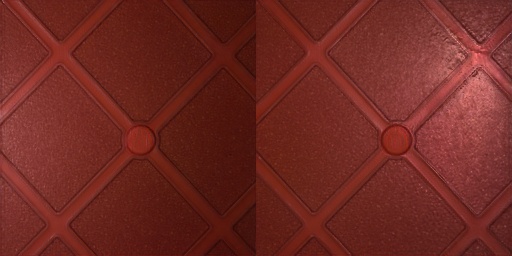

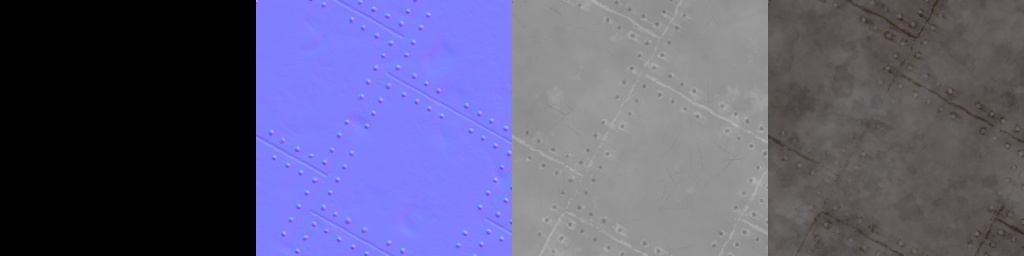

plastic-redgrid
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.100 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.095 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.103 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.116 |

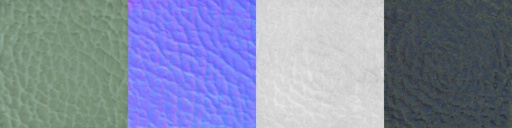

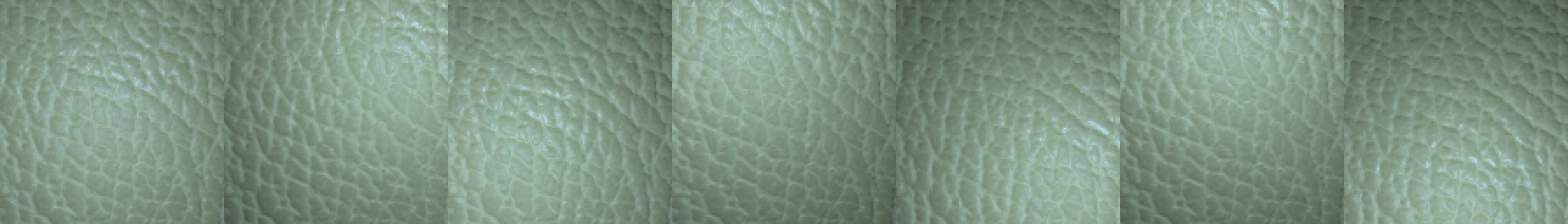

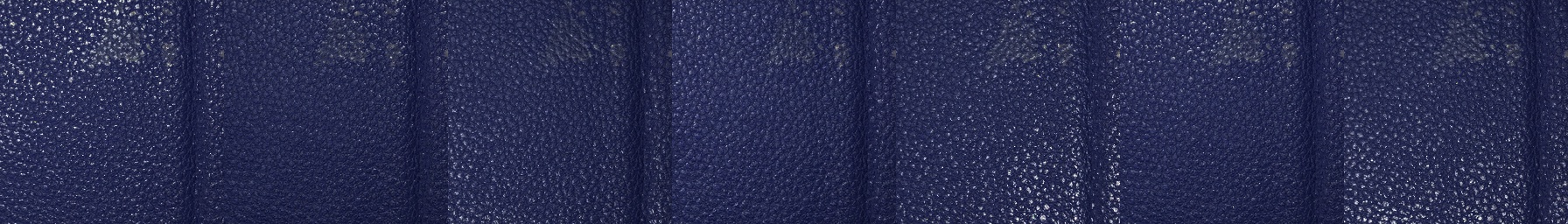

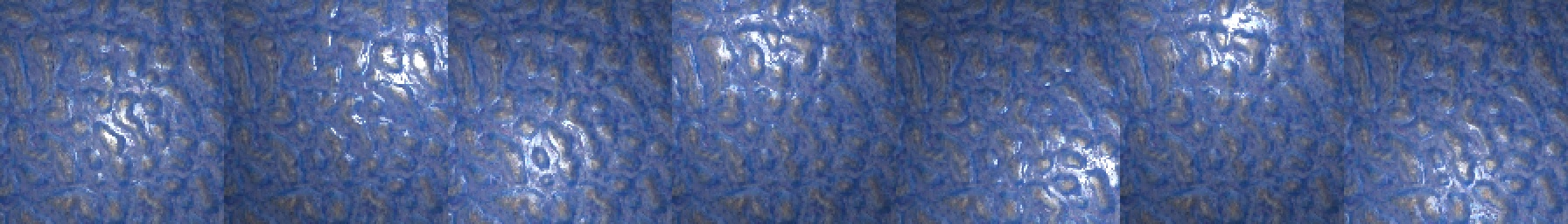

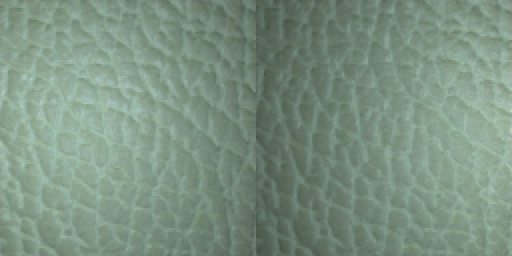

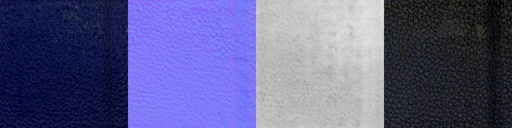

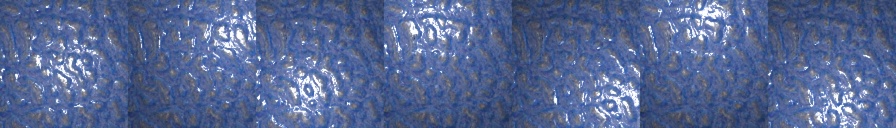

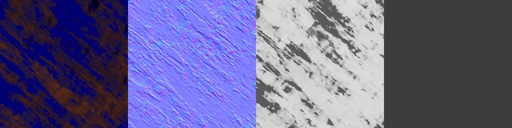

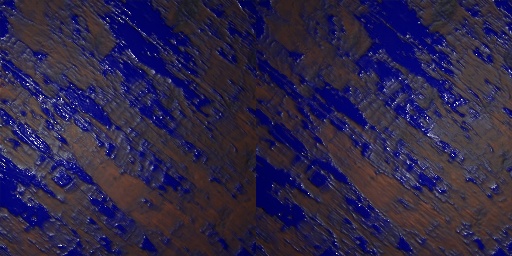

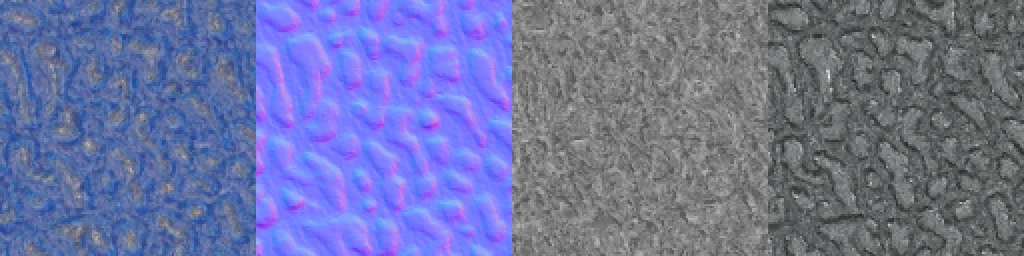

leather-blue
Remark:
The uninitialized methods are computing more correct roughness maps. Roughness initialization from
Deschaintre19 is too low here, and contains an artifact which Gao's method fails to remove.
Ours has sharper maps and lower LPIPS than [Gao19].
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.223 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.146 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.356 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.315 |

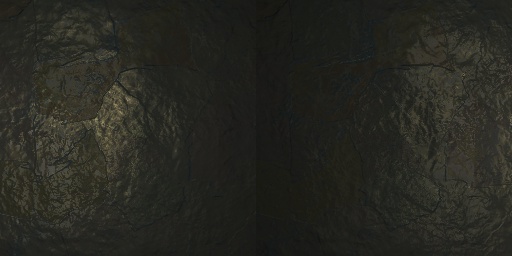

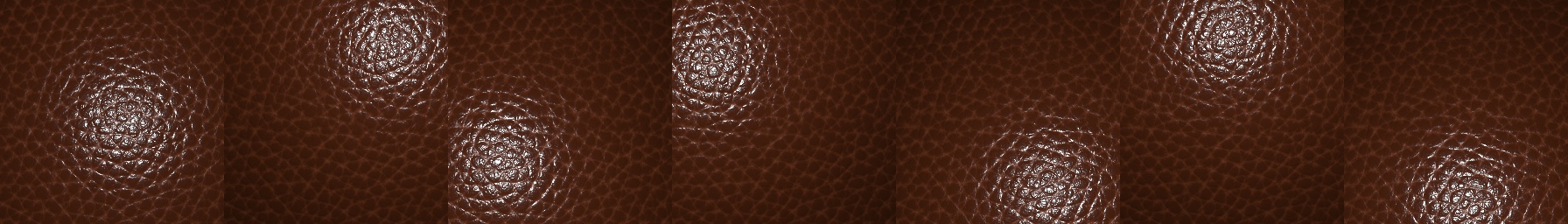

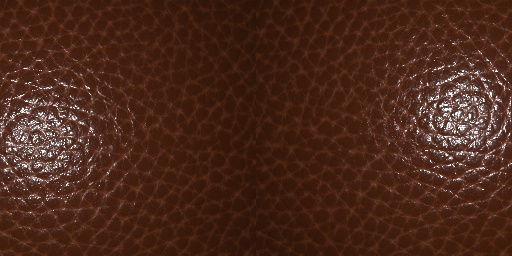

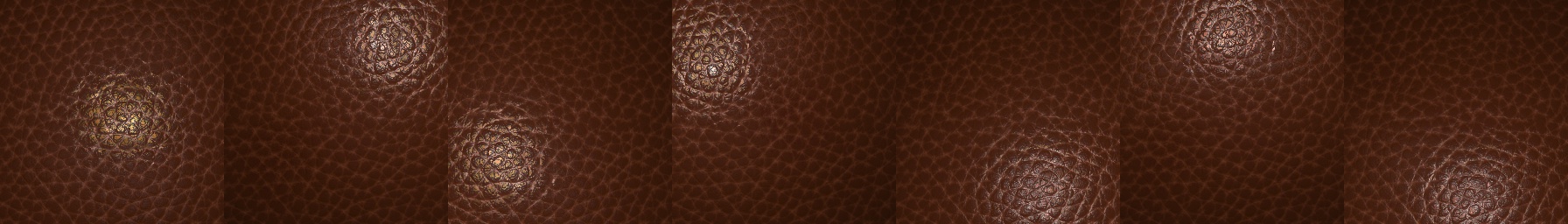

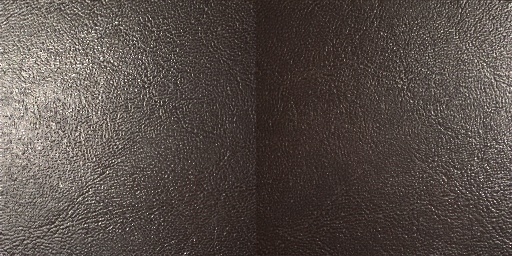

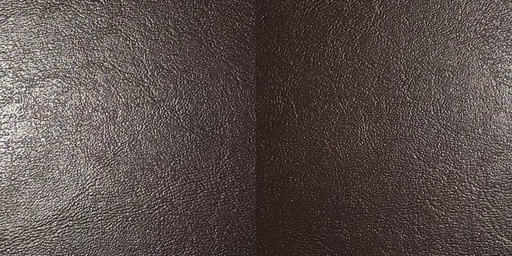

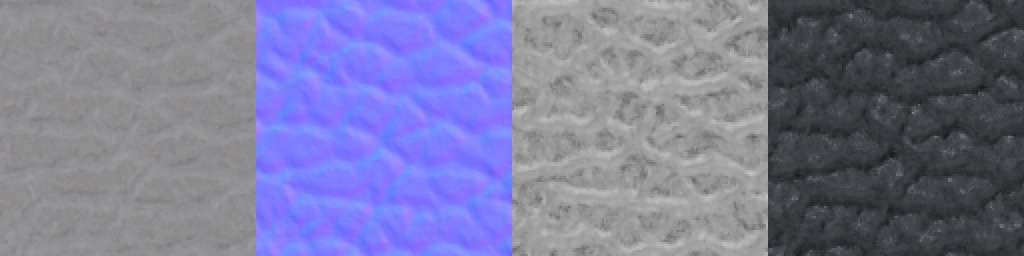

leather-darkbrown
Remark:
Both optimization methods (ours and Gao19) perform similarly, with or without initialization.
Our LPIPS scores are slightly better.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.288 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.225 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.282 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.205 |

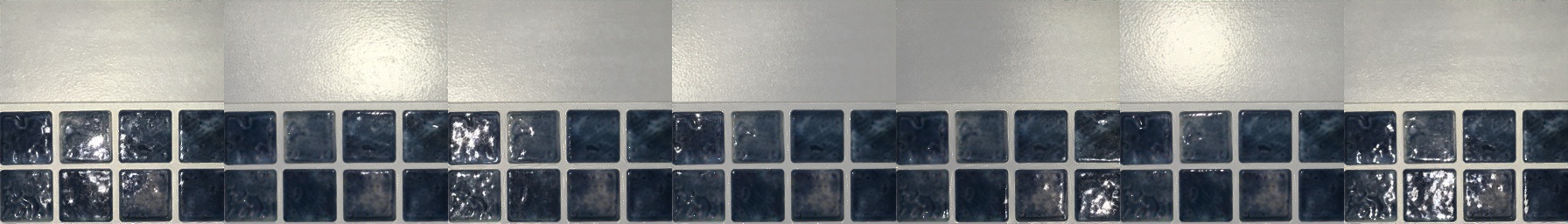

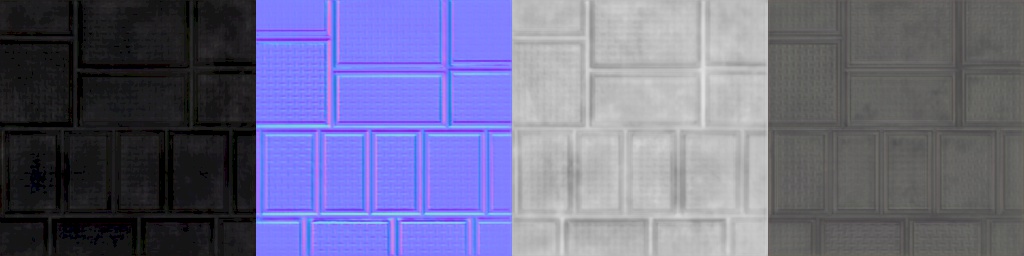

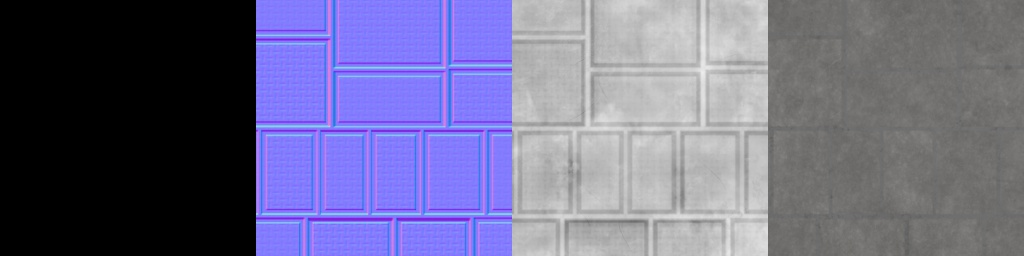

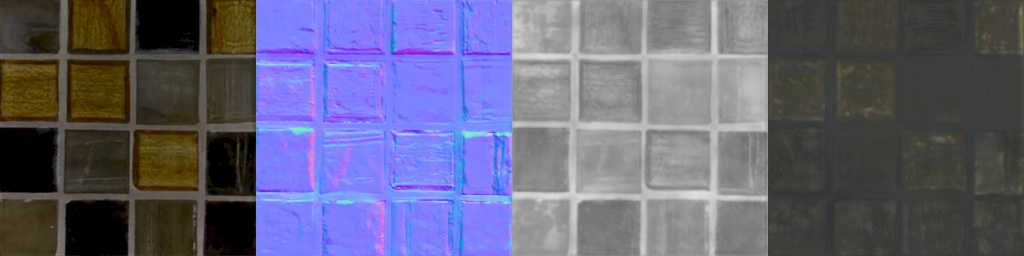

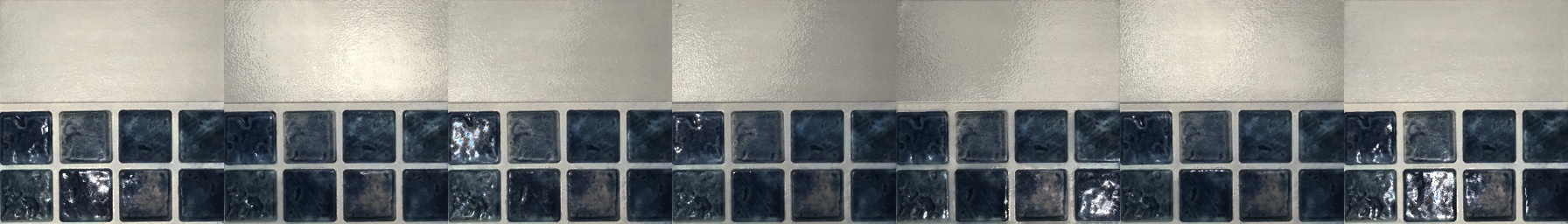

bathroomtile1
Remark:
Our maps (with or without initialization) have fewer artifacts than Gao19, especially in specular
map. For re-rendering on novel views, none of the methods are very close.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.264 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.186 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.222 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.235 |

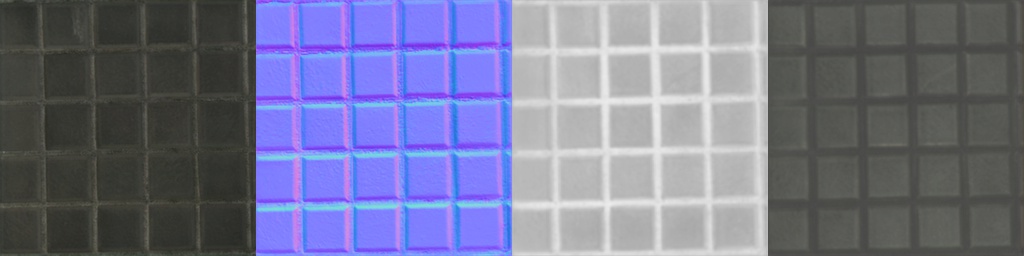

bathroomtile2
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.242 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.225 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.231 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.192 |
wood-jatoba
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.225 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.252 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.210 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.225 |

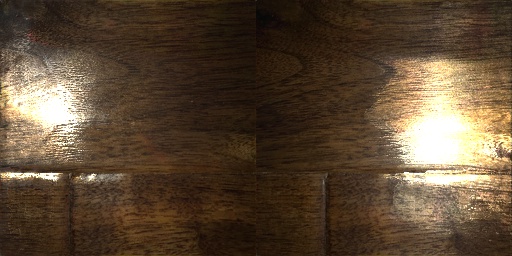

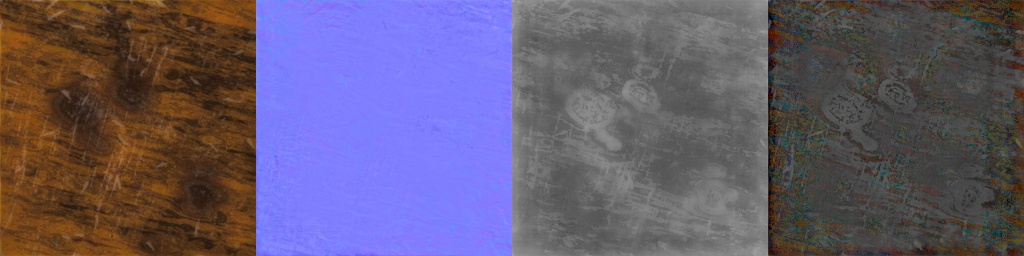

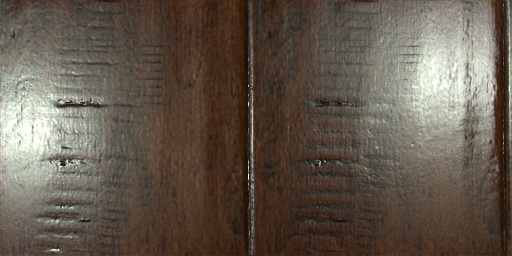

wood-walnut
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.283 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.226 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.252 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.199 |
wood-t
Remark:
Despite the slightly better LPIPS score of [Gao19]+ over Ours, both of our results have fewer artifacts
in the maps.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.173 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.199 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.167 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.147 |
wood-alder
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.240 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.174 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.183 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.176 |

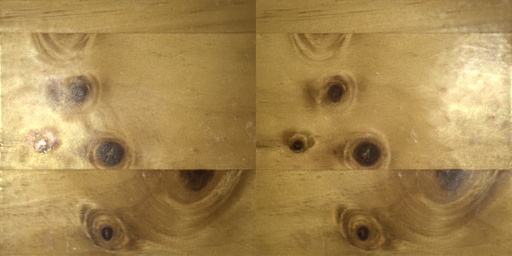

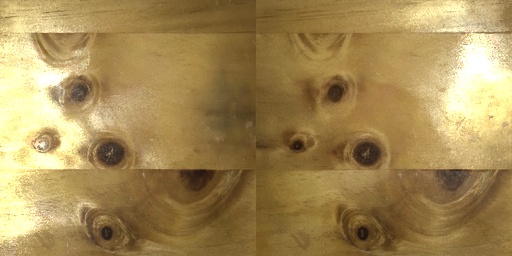

wood-knotty
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.234 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.164 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.200 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.171 |

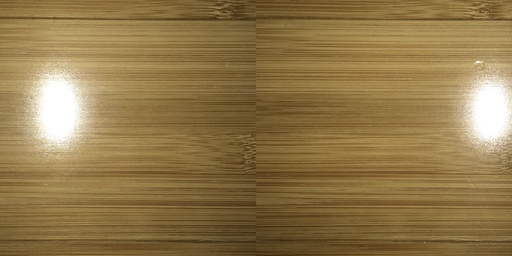

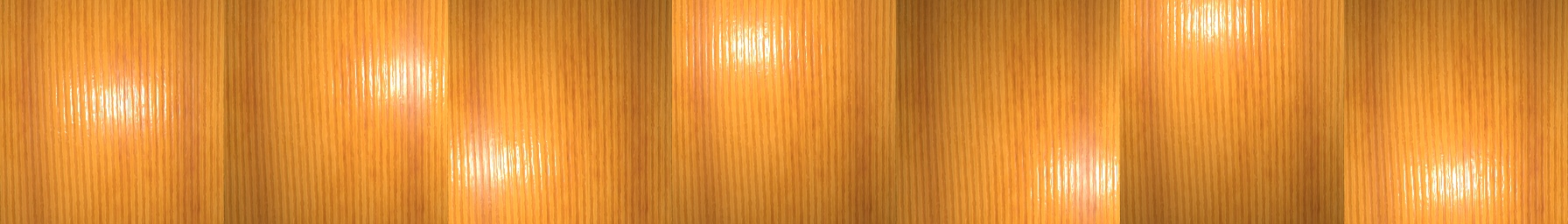

wood-bamboo
Remark:
All methods have some amount of burn-in on this highly specular material.
Still, in Ours+ the artifacts are significantly reduced, and our methods have better LPIPS
scores on novel views.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.211 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.149 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.200 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.135 |

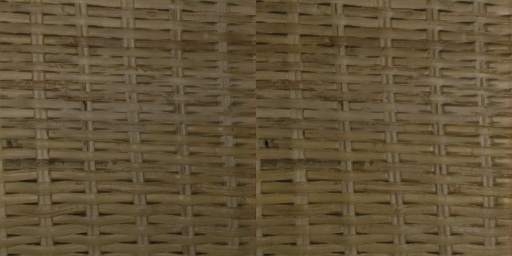

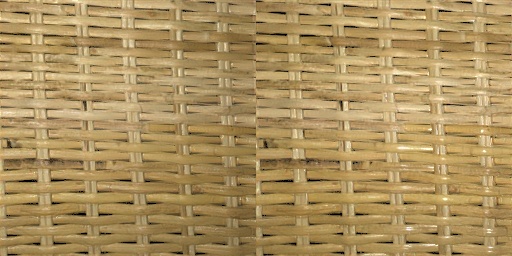

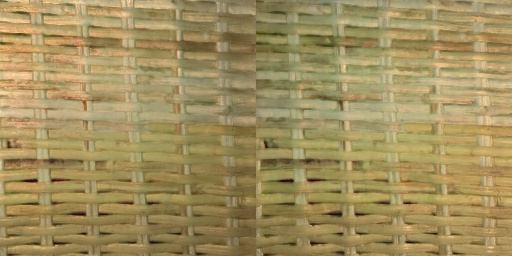

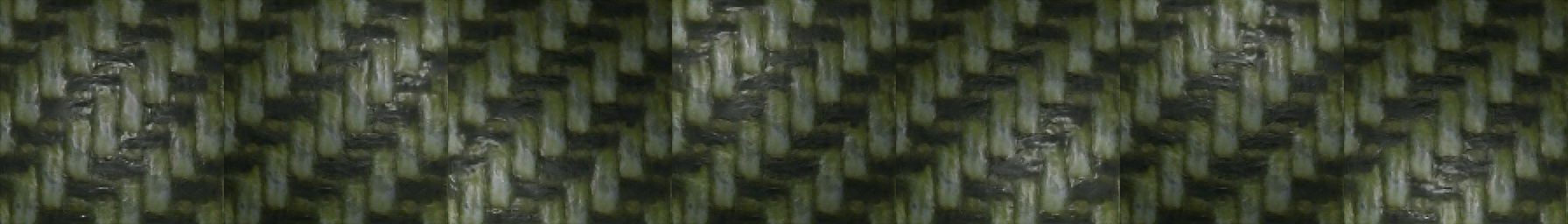

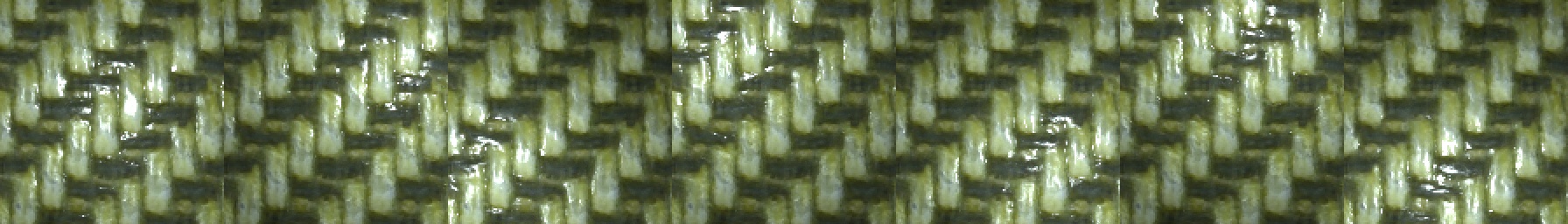

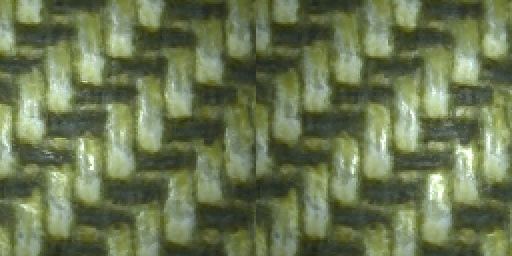

other-bamboo-veawe
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.234 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.120 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.183 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.100 |

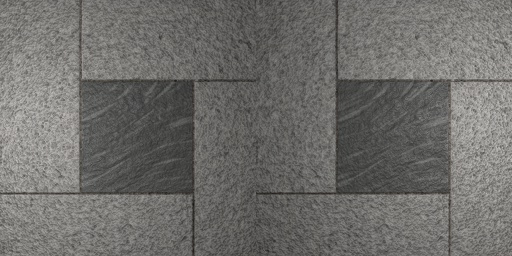

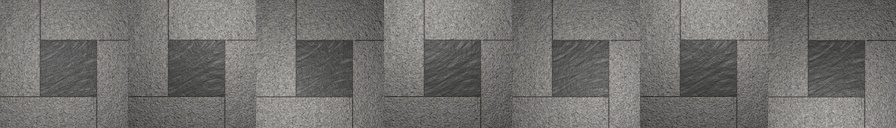

stone-bigtile
Remark:
Ours+ has the best result, for both map quality and LPIPS score. Gao19 has artifacts in
roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.138 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.140 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.142 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.113 |
stone-smalltile
Remark:
All methods perform well on re-rendering. However, our maps have fewer artifacts than Gao19.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.069 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.070 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.076 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.079 |

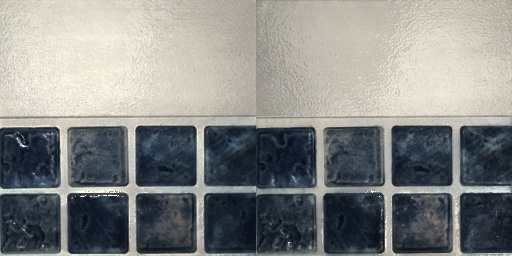

stone-bathroom-tile
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.231 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.197 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.204 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.173 |

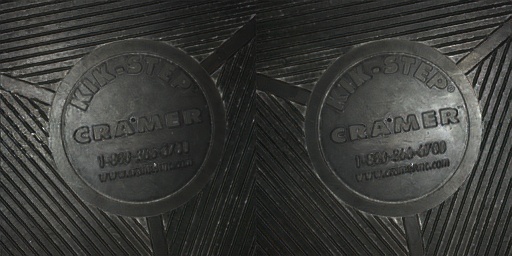

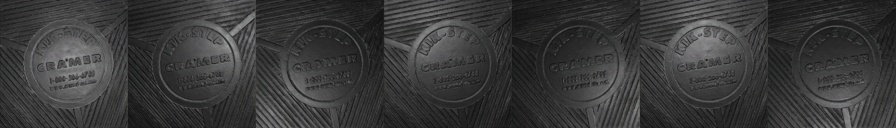

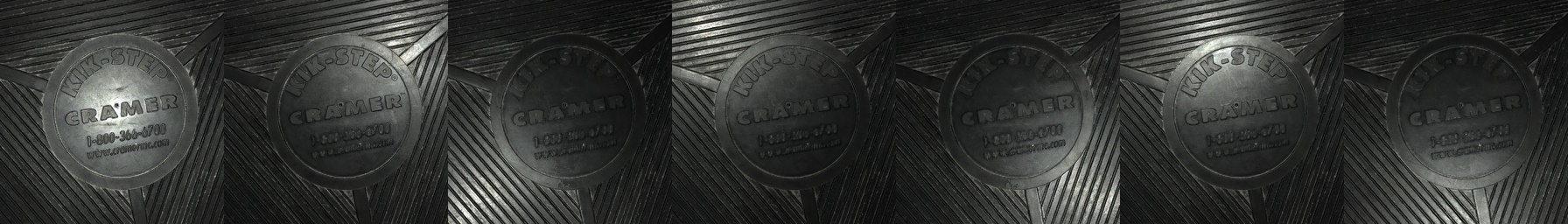

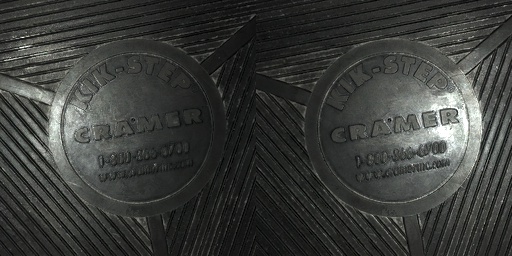

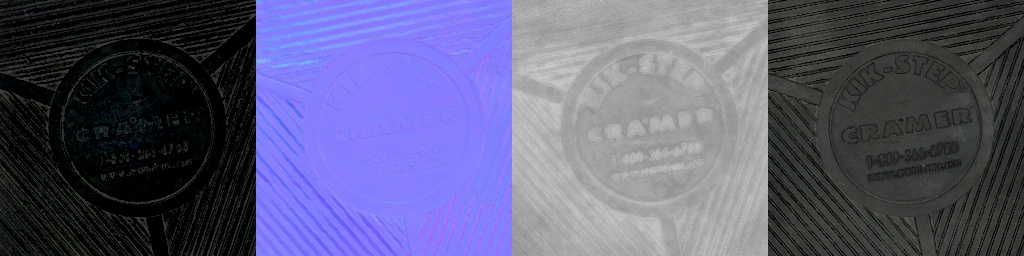

rubber-pattern
Remark:
This is a tricky example of a dielectric with close to zero diffuse component, and a highly
structured normal. All methods produce somewhat plausible maps, but with various artifacts.
Ours has the best roughness and specular map, and lowest LPIPS.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.109 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.097 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.114 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.188 |
book2
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.160 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.042 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.122 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.055 |
cards-blue
Remark:
On this Christmas card example with colorful specular coefficient variation, both methods perform reasonably
well. Ours+ has arguably the sharpest and most realistic maps, despite very slightly lower LPIPS.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.078 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.075 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.075 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.076 |
giftbag1
Remark:
Another example with colorful specular coefficient variation. Our methods have fewer artifacts,
with Ours+ having the cleanest/sharpest maps, despite a slightly lower LPIPS than Ours.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.234 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.183 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.218 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.193 |
giftbag2
Remark:
Our results, with or without initialization by Deschaintre19, have significantly reduced artifacts
compared to Gao19, in roughness and specular maps.
Deschaintre19 produces visually clean maps, but re-rendered appearance is far from the reference.
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
|
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| | | | | |
LPIPS:
0.196 |
| Ours |
 |
 |
 |
|
| | | | | |
LPIPS:
0.141 |
|
| [Gao19]+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.168 |
| Ours+ |
 |
 |
 |
|
| | | | | |
LPIPS:
0.155 |
Synthetic Data
In what follows, we show synthetic examples generated using Gao19 and our technique.
Methods marked as "+" are initialized with Deschaintre19's direct predictions; those without "+" are obtained using the better of two constant initializations.
The lowest and second lowest RMSE/LPIPS values in each column are marked in green and orange, respectively.
We find that all methods perform relatively well on synthetic data compared to real data, possibly because of the exact BRDF model match and exact calibration, and also
because the synthetic examples, while distinct from training examples, are relatively similar in style to the training set.
Thus, the differences between the methods tend to be smaller than on real data.
1

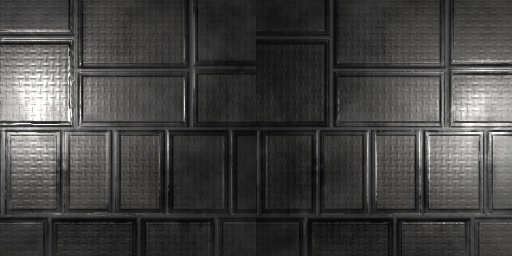

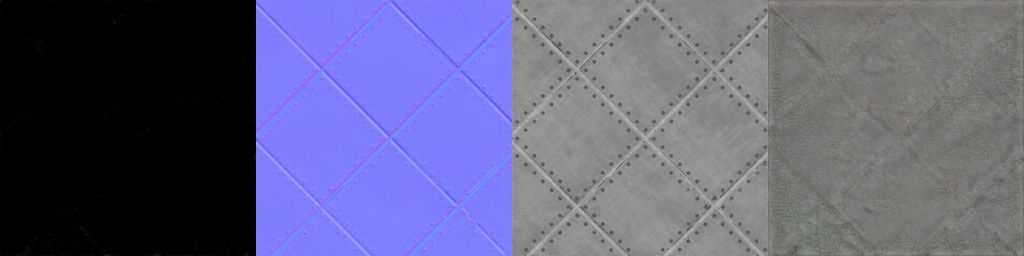

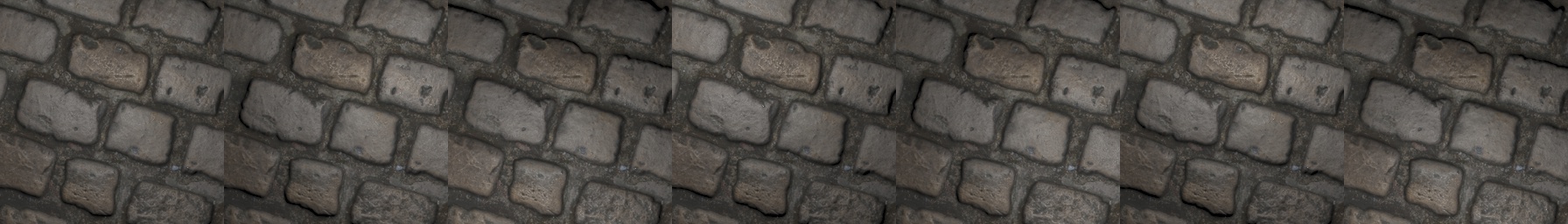

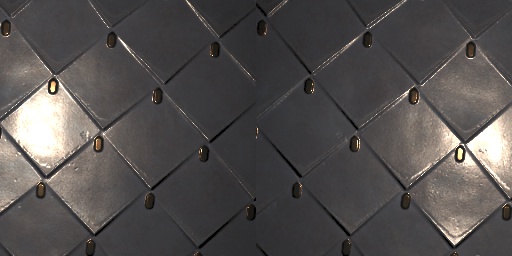

| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.056 | RMSE: 0.053 | RMSE: 0.258 | RMSE: 0.213 | |
LPIPS:
0.224 |
| Ours |
 |
 |
 |
|
| RMSE: 0.060 | RMSE: 0.060 | RMSE: 0.301 | RMSE: 0.138 | |
LPIPS:
0.163 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.061 | RMSE: 0.056 | RMSE: 0.303 | RMSE: 0.177 | |
LPIPS:
0.186 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.061 | RMSE: 0.052 | RMSE: 0.262 | RMSE: 0.155 | |
LPIPS:
0.158 |
2
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.038 | RMSE: 0.034 | RMSE: 0.201 | RMSE: 0.092 | |
LPIPS:
0.182 |
| Ours |
 |
 |
 |
|
| RMSE: 0.041 | RMSE: 0.041 | RMSE: 0.232 | RMSE: 0.078 | |
LPIPS:
0.182 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.042 | RMSE: 0.031 | RMSE: 0.247 | RMSE: 0.072 | |
LPIPS:
0.174 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.041 | RMSE: 0.032 | RMSE: 0.243 | RMSE: 0.067 | |
LPIPS:
0.166 |
3
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.045 | RMSE: 0.040 | RMSE: 0.075 | RMSE: 0.087 | |
LPIPS:
0.054 |
| Ours |
 |
 |
 |
|
| RMSE: 0.030 | RMSE: 0.046 | RMSE: 0.077 | RMSE: 0.057 | |
LPIPS:
0.059 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.025 | RMSE: 0.017 | RMSE: 0.058 | RMSE: 0.055 | |
LPIPS:
0.030 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.023 | RMSE: 0.027 | RMSE: 0.048 | RMSE: 0.036 | |
LPIPS:
0.026 |
4
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.016 | RMSE: 0.019 | RMSE: 0.094 | RMSE: 0.089 | |
LPIPS:
0.086 |
| Ours |
 |
 |
 |
|
| RMSE: 0.016 | RMSE: 0.016 | RMSE: 0.067 | RMSE: 0.048 | |
LPIPS:
0.073 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.017 | RMSE: 0.009 | RMSE: 0.055 | RMSE: 0.046 | |
LPIPS:
0.048 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.014 | RMSE: 0.013 | RMSE: 0.050 | RMSE: 0.051 | |
LPIPS:
0.062 |
5
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.055 | RMSE: 0.034 | RMSE: 0.271 | RMSE: 0.197 | |
LPIPS:
0.238 |
| Ours |
 |
 |
 |
|
| RMSE: 0.040 | RMSE: 0.048 | RMSE: 0.073 | RMSE: 0.191 | |
LPIPS:
0.204 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.045 | RMSE: 0.022 | RMSE: 0.157 | RMSE: 0.196 | |
LPIPS:
0.128 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.035 | RMSE: 0.024 | RMSE: 0.090 | RMSE: 0.168 | |
LPIPS:
0.110 |
6
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.082 | RMSE: 0.044 | RMSE: 0.155 | RMSE: 0.286 | |
LPIPS:
0.233 |
| Ours |
 |
 |
 |
|
| RMSE: 0.041 | RMSE: 0.042 | RMSE: 0.102 | RMSE: 0.192 | |
LPIPS:
0.174 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.049 | RMSE: 0.027 | RMSE: 0.098 | RMSE: 0.196 | |
LPIPS:
0.104 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.042 | RMSE: 0.025 | RMSE: 0.085 | RMSE: 0.173 | |
LPIPS:
0.086 |
7
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.058 | RMSE: 0.029 | RMSE: 0.043 | RMSE: 0.111 | |
LPIPS:
0.098 |
| Ours |
 |
 |
 |
|
| RMSE: 0.047 | RMSE: 0.018 | RMSE: 0.020 | RMSE: 0.071 | |
LPIPS:
0.043 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.043 | RMSE: 0.012 | RMSE: 0.015 | RMSE: 0.042 | |
LPIPS:
0.032 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.029 | RMSE: 0.011 | RMSE: 0.012 | RMSE: 0.048 | |
LPIPS:
0.012 |
8
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.134 | RMSE: 0.020 | RMSE: 0.146 | RMSE: 0.145 | |
LPIPS:
0.235 |
| Ours |
 |
 |
 |
|
| RMSE: 0.093 | RMSE: 0.022 | RMSE: 0.095 | RMSE: 0.173 | |
LPIPS:
0.081 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.161 | RMSE: 0.025 | RMSE: 0.064 | RMSE: 0.122 | |
LPIPS:
0.152 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.077 | RMSE: 0.019 | RMSE: 0.082 | RMSE: 0.129 | |
LPIPS:
0.056 |
9
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.030 | RMSE: 0.050 | RMSE: 0.061 | RMSE: 0.095 | |
LPIPS:
0.126 |
| Ours |
 |
 |
 |
|
| RMSE: 0.036 | RMSE: 0.054 | RMSE: 0.103 | RMSE: 0.059 | |
LPIPS:
0.125 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.023 | RMSE: 0.023 | RMSE: 0.026 | RMSE: 0.048 | |
LPIPS:
0.061 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.011 | RMSE: 0.018 | RMSE: 0.025 | RMSE: 0.044 | |
LPIPS:
0.038 |
10
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.043 | RMSE: 0.070 | RMSE: 0.024 | RMSE: 0.082 | |
LPIPS:
0.068 |
| Ours |
 |
 |
 |
|
| RMSE: 0.048 | RMSE: 0.064 | RMSE: 0.069 | RMSE: 0.067 | |
LPIPS:
0.059 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.033 | RMSE: 0.037 | RMSE: 0.017 | RMSE: 0.054 | |
LPIPS:
0.029 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.051 | RMSE: 0.035 | RMSE: 0.062 | RMSE: 0.055 | |
LPIPS:
0.035 |
11
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.033 | RMSE: 0.012 | RMSE: 0.100 | RMSE: 0.145 | |
LPIPS:
0.046 |
| Ours |
 |
 |
 |
|
| RMSE: 0.015 | RMSE: 0.026 | RMSE: 0.045 | RMSE: 0.059 | |
LPIPS:
0.122 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.030 | RMSE: 0.008 | RMSE: 0.019 | RMSE: 0.021 | |
LPIPS:
0.024 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.011 | RMSE: 0.010 | RMSE: 0.029 | RMSE: 0.044 | |
LPIPS:
0.028 |
12
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.044 | RMSE: 0.083 | RMSE: 0.078 | RMSE: 0.108 | |
LPIPS:
0.037 |
| Ours |
 |
 |
 |
|
| RMSE: 0.043 | RMSE: 0.103 | RMSE: 0.049 | RMSE: 0.024 | |
LPIPS:
0.042 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.023 | RMSE: 0.030 | RMSE: 0.029 | RMSE: 0.030 | |
LPIPS:
0.012 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.018 | RMSE: 0.037 | RMSE: 0.025 | RMSE: 0.020 | |
LPIPS:
0.006 |
13
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.016 | RMSE: 0.032 | RMSE: 0.033 | RMSE: 0.049 | |
LPIPS:
0.258 |
| Ours |
 |
 |
 |
|
| RMSE: 0.002 | RMSE: 0.023 | RMSE: 0.021 | RMSE: 0.032 | |
LPIPS:
0.133 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.009 | RMSE: 0.017 | RMSE: 0.035 | RMSE: 0.044 | |
LPIPS:
0.124 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.003 | RMSE: 0.016 | RMSE: 0.019 | RMSE: 0.043 | |
LPIPS:
0.067 |
14
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.023 | RMSE: 0.014 | RMSE: 0.028 | RMSE: 0.047 | |
LPIPS:
0.085 |
| Ours |
 |
 |
 |
|
| RMSE: 0.017 | RMSE: 0.007 | RMSE: 0.020 | RMSE: 0.020 | |
LPIPS:
0.011 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.018 | RMSE: 0.007 | RMSE: 0.016 | RMSE: 0.030 | |
LPIPS:
0.019 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.032 | RMSE: 0.007 | RMSE: 0.023 | RMSE: 0.016 | |
LPIPS:
0.011 |
15
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.013 | RMSE: 0.008 | RMSE: 0.041 | RMSE: 0.047 | |
LPIPS:
0.051 |
| Ours |
 |
 |
 |
|
| RMSE: 0.022 | RMSE: 0.012 | RMSE: 0.038 | RMSE: 0.011 | |
LPIPS:
0.036 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.015 | RMSE: 0.008 | RMSE: 0.065 | RMSE: 0.046 | |
LPIPS:
0.037 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.007 | RMSE: 0.007 | RMSE: 0.054 | RMSE: 0.026 | |
LPIPS:
0.028 |
16
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.102 | RMSE: 0.045 | RMSE: 0.032 | RMSE: 0.102 | |
LPIPS:
0.129 |
| Ours |
 |
 |
 |
|
| RMSE: 0.083 | RMSE: 0.041 | RMSE: 0.030 | RMSE: 0.037 | |
LPIPS:
0.085 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.059 | RMSE: 0.027 | RMSE: 0.023 | RMSE: 0.049 | |
LPIPS:
0.075 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.084 | RMSE: 0.019 | RMSE: 0.019 | RMSE: 0.035 | |
LPIPS:
0.054 |
17
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.031 | RMSE: 0.083 | RMSE: 0.059 | RMSE: 0.056 | |
LPIPS:
0.145 |
| Ours |
 |
 |
 |
|
| RMSE: 0.031 | RMSE: 0.085 | RMSE: 0.047 | RMSE: 0.024 | |
LPIPS:
0.155 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.015 | RMSE: 0.019 | RMSE: 0.054 | RMSE: 0.078 | |
LPIPS:
0.050 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.010 | RMSE: 0.023 | RMSE: 0.077 | RMSE: 0.078 | |
LPIPS:
0.078 |
18
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.070 | RMSE: 0.064 | RMSE: 0.287 | RMSE: 0.255 | |
LPIPS:
0.141 |
| Ours |
 |
 |
 |
|
| RMSE: 0.055 | RMSE: 0.075 | RMSE: 0.340 | RMSE: 0.148 | |
LPIPS:
0.062 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.058 | RMSE: 0.056 | RMSE: 0.120 | RMSE: 0.199 | |
LPIPS:
0.126 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.045 | RMSE: 0.059 | RMSE: 0.131 | RMSE: 0.214 | |
LPIPS:
0.048 |
19
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.062 | RMSE: 0.060 | RMSE: 0.320 | RMSE: 0.257 | |
LPIPS:
0.146 |
| Ours |
 |
 |
 |
|
| RMSE: 0.045 | RMSE: 0.070 | RMSE: 0.281 | RMSE: 0.094 | |
LPIPS:
0.057 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.054 | RMSE: 0.059 | RMSE: 0.129 | RMSE: 0.172 | |
LPIPS:
0.140 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.042 | RMSE: 0.062 | RMSE: 0.133 | RMSE: 0.184 | |
LPIPS:
0.053 |
20
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.011 | RMSE: 0.020 | RMSE: 0.027 | RMSE: 0.072 | |
LPIPS:
0.204 |
| Ours |
 |
 |
 |
|
| RMSE: 0.002 | RMSE: 0.013 | RMSE: 0.020 | RMSE: 0.033 | |
LPIPS:
0.076 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.009 | RMSE: 0.014 | RMSE: 0.021 | RMSE: 0.038 | |
LPIPS:
0.152 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.003 | RMSE: 0.007 | RMSE: 0.020 | RMSE: 0.030 | |
LPIPS:
0.021 |
21
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.019 | RMSE: 0.015 | RMSE: 0.075 | RMSE: 0.059 | |
LPIPS:
0.101 |
| Ours |
 |
 |
 |
|
| RMSE: 0.009 | RMSE: 0.013 | RMSE: 0.076 | RMSE: 0.020 | |
LPIPS:
0.051 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.013 | RMSE: 0.013 | RMSE: 0.082 | RMSE: 0.088 | |
LPIPS:
0.063 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.008 | RMSE: 0.012 | RMSE: 0.062 | RMSE: 0.044 | |
LPIPS:
0.049 |
22
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.030 | RMSE: 0.036 | RMSE: 0.029 | RMSE: 0.061 | |
LPIPS:
0.084 |
| Ours |
 |
 |
 |
|
| RMSE: 0.004 | RMSE: 0.021 | RMSE: 0.018 | RMSE: 0.014 | |
LPIPS:
0.015 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.025 | RMSE: 0.030 | RMSE: 0.020 | RMSE: 0.041 | |
LPIPS:
0.048 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.001 | RMSE: 0.011 | RMSE: 0.013 | RMSE: 0.012 | |
LPIPS:
0.005 |
23
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.036 | RMSE: 0.011 | RMSE: 0.067 | RMSE: 0.179 | |
LPIPS:
0.097 |
| Ours |
 |
 |
 |
|
| RMSE: 0.025 | RMSE: 0.012 | RMSE: 0.098 | RMSE: 0.169 | |
LPIPS:
0.064 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.036 | RMSE: 0.007 | RMSE: 0.040 | RMSE: 0.085 | |
LPIPS:
0.077 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.024 | RMSE: 0.011 | RMSE: 0.054 | RMSE: 0.174 | |
LPIPS:
0.069 |
24
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.023 | RMSE: 0.040 | RMSE: 0.026 | RMSE: 0.040 | |
LPIPS:
0.070 |
| Ours |
 |
 |
 |
|
| RMSE: 0.022 | RMSE: 0.029 | RMSE: 0.032 | RMSE: 0.011 | |
LPIPS:
0.035 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.020 | RMSE: 0.028 | RMSE: 0.022 | RMSE: 0.027 | |
LPIPS:
0.039 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.015 | RMSE: 0.019 | RMSE: 0.025 | RMSE: 0.010 | |
LPIPS:
0.022 |
25
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.035 | RMSE: 0.057 | RMSE: 0.069 | RMSE: 0.093 | |
LPIPS:
0.265 |
| Ours |
 |
 |
 |
|
| RMSE: 0.014 | RMSE: 0.031 | RMSE: 0.019 | RMSE: 0.022 | |
LPIPS:
0.020 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.030 | RMSE: 0.046 | RMSE: 0.024 | RMSE: 0.073 | |
LPIPS:
0.201 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.009 | RMSE: 0.022 | RMSE: 0.021 | RMSE: 0.017 | |
LPIPS:
0.014 |
26
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.077 | RMSE: 0.105 | RMSE: 0.047 | RMSE: 0.116 | |
LPIPS:
0.097 |
| Ours |
 |
 |
 |
|
| RMSE: 0.027 | RMSE: 0.049 | RMSE: 0.015 | RMSE: 0.017 | |
LPIPS:
0.013 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.046 | RMSE: 0.053 | RMSE: 0.017 | RMSE: 0.057 | |
LPIPS:
0.056 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.025 | RMSE: 0.034 | RMSE: 0.012 | RMSE: 0.018 | |
LPIPS:
0.006 |
27
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.023 | RMSE: 0.018 | RMSE: 0.082 | RMSE: 0.293 | |
LPIPS:
0.065 |
| Ours |
 |
 |
 |
|
| RMSE: 0.005 | RMSE: 0.015 | RMSE: 0.043 | RMSE: 0.178 | |
LPIPS:
0.050 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.015 | RMSE: 0.011 | RMSE: 0.028 | RMSE: 0.131 | |
LPIPS:
0.040 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.003 | RMSE: 0.006 | RMSE: 0.037 | RMSE: 0.168 | |
LPIPS:
0.017 |
28
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.056 | RMSE: 0.056 | RMSE: 0.433 | RMSE: 0.180 | |
LPIPS:
0.257 |
| Ours |
 |
 |
 |
|
| RMSE: 0.023 | RMSE: 0.066 | RMSE: 0.040 | RMSE: 0.016 | |
LPIPS:
0.092 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.048 | RMSE: 0.033 | RMSE: 0.077 | RMSE: 0.081 | |
LPIPS:
0.224 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.020 | RMSE: 0.041 | RMSE: 0.070 | RMSE: 0.106 | |
LPIPS:
0.068 |
29
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.077 | RMSE: 0.042 | RMSE: 0.365 | RMSE: 0.554 | |
LPIPS:
0.477 |
| Ours |
 |
 |
 |
|
| RMSE: 0.048 | RMSE: 0.050 | RMSE: 0.063 | RMSE: 0.409 | |
LPIPS:
0.325 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.060 | RMSE: 0.031 | RMSE: 0.047 | RMSE: 0.235 | |
LPIPS:
0.258 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.050 | RMSE: 0.035 | RMSE: 0.075 | RMSE: 0.380 | |
LPIPS:
0.178 |
30
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.038 | RMSE: 0.070 | RMSE: 0.178 | RMSE: 0.118 | |
LPIPS:
0.142 |
| Ours |
 |
 |
 |
|
| RMSE: 0.030 | RMSE: 0.047 | RMSE: 0.053 | RMSE: 0.038 | |
LPIPS:
0.056 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.035 | RMSE: 0.057 | RMSE: 0.072 | RMSE: 0.082 | |
LPIPS:
0.085 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.036 | RMSE: 0.043 | RMSE: 0.051 | RMSE: 0.051 | |
LPIPS:
0.047 |
31
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.083 | RMSE: 0.127 | RMSE: 0.083 | RMSE: 0.103 | |
LPIPS:
0.134 |
| Ours |
 |
 |
 |
|
| RMSE: 0.049 | RMSE: 0.104 | RMSE: 0.059 | RMSE: 0.018 | |
LPIPS:
0.036 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.044 | RMSE: 0.086 | RMSE: 0.033 | RMSE: 0.073 | |
LPIPS:
0.082 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.044 | RMSE: 0.078 | RMSE: 0.062 | RMSE: 0.021 | |
LPIPS:
0.017 |
32
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.030 | RMSE: 0.058 | RMSE: 0.090 | RMSE: 0.052 | |
LPIPS:
0.122 |
| Ours |
 |
 |
 |
|
| RMSE: 0.027 | RMSE: 0.049 | RMSE: 0.078 | RMSE: 0.015 | |
LPIPS:
0.055 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.027 | RMSE: 0.047 | RMSE: 0.078 | RMSE: 0.043 | |
LPIPS:
0.086 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.019 | RMSE: 0.041 | RMSE: 0.061 | RMSE: 0.012 | |
LPIPS:
0.039 |
33
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.052 | RMSE: 0.083 | RMSE: 0.063 | RMSE: 0.065 | |
LPIPS:
0.126 |
| Ours |
 |
 |
 |
|
| RMSE: 0.044 | RMSE: 0.076 | RMSE: 0.065 | RMSE: 0.013 | |
LPIPS:
0.054 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.042 | RMSE: 0.079 | RMSE: 0.078 | RMSE: 0.066 | |
LPIPS:
0.127 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.026 | RMSE: 0.052 | RMSE: 0.052 | RMSE: 0.009 | |
LPIPS:
0.017 |
34
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.065 | RMSE: 0.059 | RMSE: 0.141 | RMSE: 0.068 | |
LPIPS:
0.040 |
| Ours |
 |
 |
 |
|
| RMSE: 0.092 | RMSE: 0.096 | RMSE: 0.085 | RMSE: 0.013 | |
LPIPS:
0.054 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.028 | RMSE: 0.018 | RMSE: 0.077 | RMSE: 0.039 | |
LPIPS:
0.017 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.025 | RMSE: 0.025 | RMSE: 0.057 | RMSE: 0.011 | |
LPIPS:
0.012 |
35
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.045 | RMSE: 0.039 | RMSE: 0.182 | RMSE: 0.047 | |
LPIPS:
0.066 |
| Ours |
 |
 |
 |
|
| RMSE: 0.021 | RMSE: 0.032 | RMSE: 0.049 | RMSE: 0.010 | |
LPIPS:
0.025 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.025 | RMSE: 0.024 | RMSE: 0.069 | RMSE: 0.047 | |
LPIPS:
0.042 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.013 | RMSE: 0.016 | RMSE: 0.039 | RMSE: 0.012 | |
LPIPS:
0.016 |
36
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.048 | RMSE: 0.081 | RMSE: 0.160 | RMSE: 0.100 | |
LPIPS:
0.089 |
| Ours |
 |
 |
 |
|
| RMSE: 0.053 | RMSE: 0.089 | RMSE: 0.173 | RMSE: 0.038 | |
LPIPS:
0.069 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.041 | RMSE: 0.045 | RMSE: 0.101 | RMSE: 0.064 | |
LPIPS:
0.054 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.029 | RMSE: 0.040 | RMSE: 0.091 | RMSE: 0.028 | |
LPIPS:
0.044 |
37
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.141 | RMSE: 0.140 | RMSE: 0.081 | RMSE: 0.102 | |
LPIPS:
0.092 |
| Ours |
 |
 |
 |
|
| RMSE: 0.098 | RMSE: 0.113 | RMSE: 0.107 | RMSE: 0.027 | |
LPIPS:
0.017 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.122 | RMSE: 0.111 | RMSE: 0.093 | RMSE: 0.106 | |
LPIPS:
0.079 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.065 | RMSE: 0.088 | RMSE: 0.115 | RMSE: 0.059 | |
LPIPS:
0.010 |
38
| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.033 | RMSE: 0.035 | RMSE: 0.214 | RMSE: 0.121 | |
LPIPS:
0.224 |
| Ours |
 |
 |
 |
|
| RMSE: 0.008 | RMSE: 0.029 | RMSE: 0.029 | RMSE: 0.022 | |
LPIPS:
0.053 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.012 | RMSE: 0.025 | RMSE: 0.033 | RMSE: 0.048 | |
LPIPS:
0.082 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.007 | RMSE: 0.020 | RMSE: 0.030 | RMSE: 0.008 | |
LPIPS:
0.030 |
39

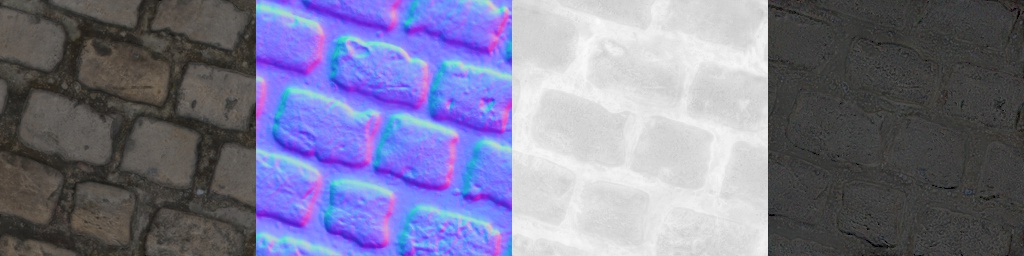

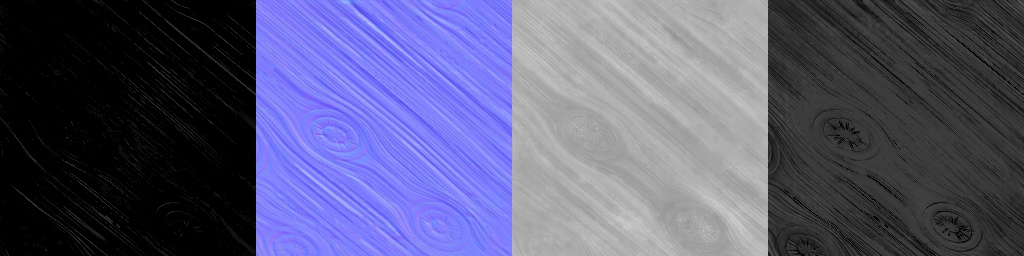

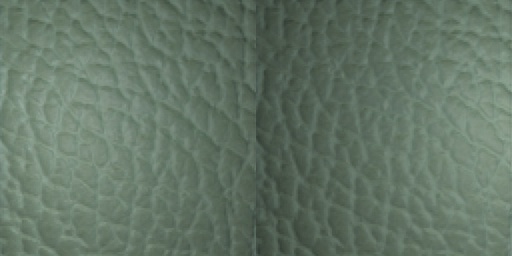

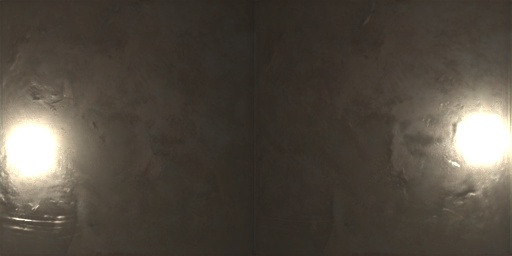

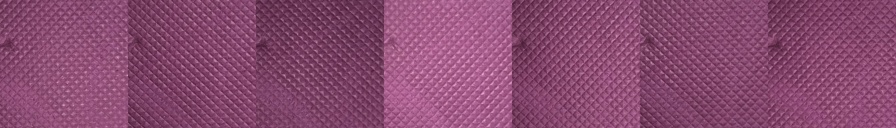

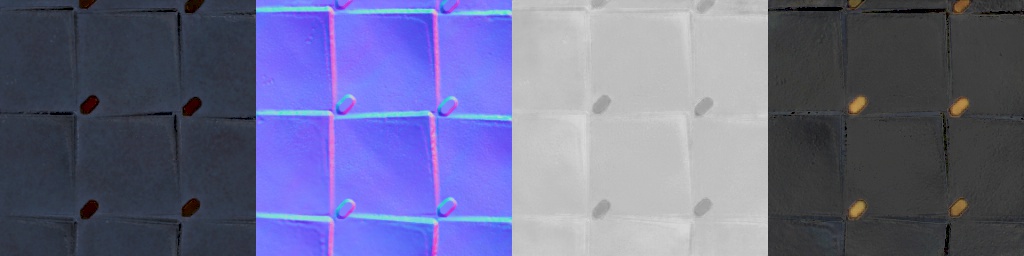

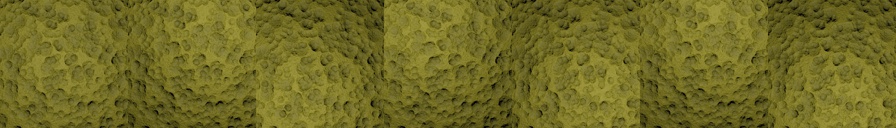

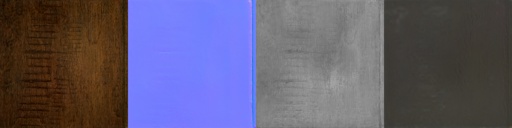

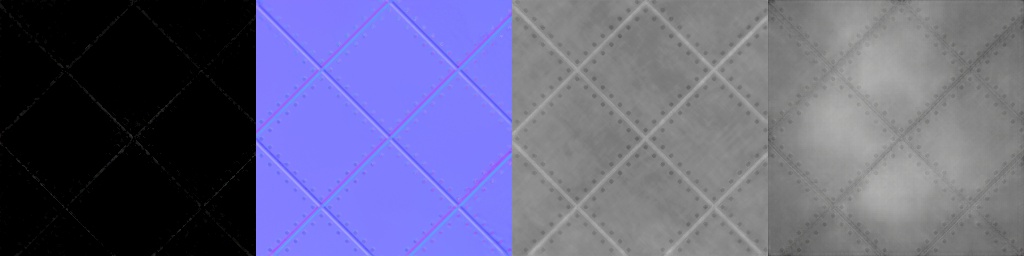

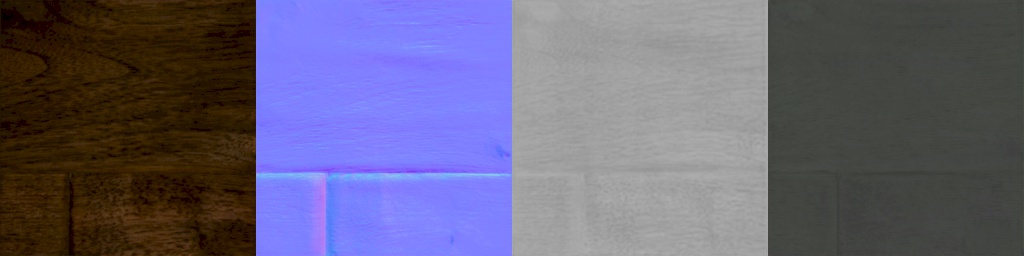

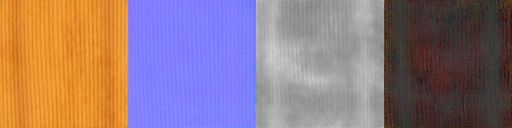

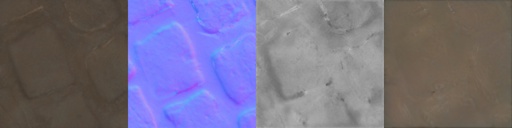

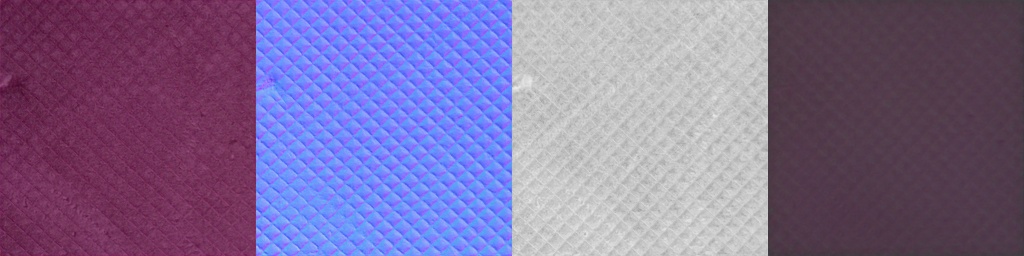

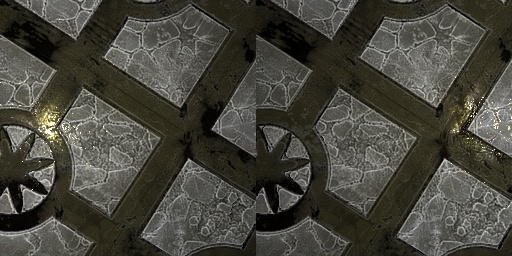

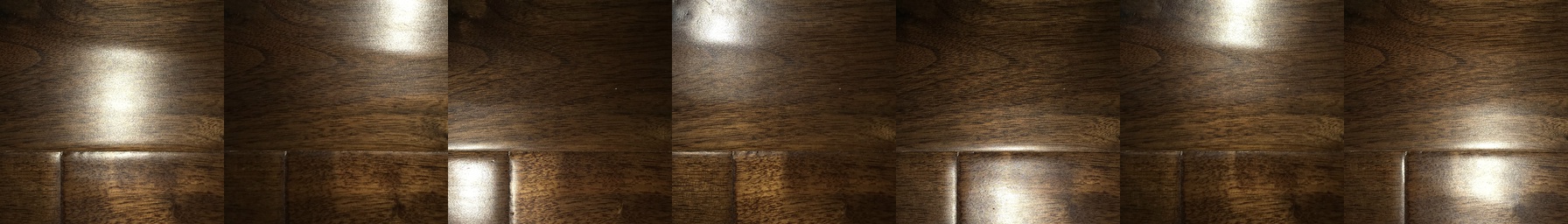

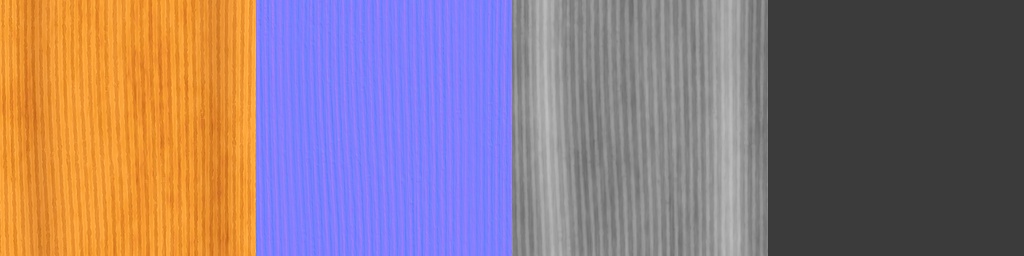

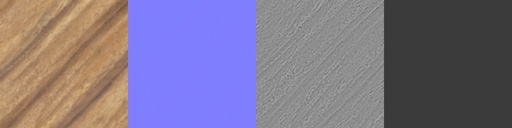

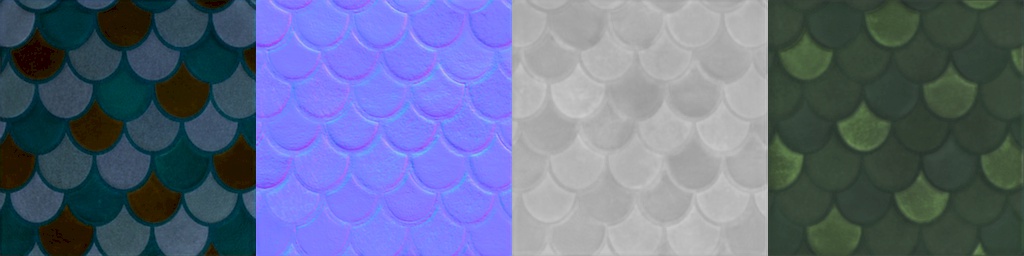

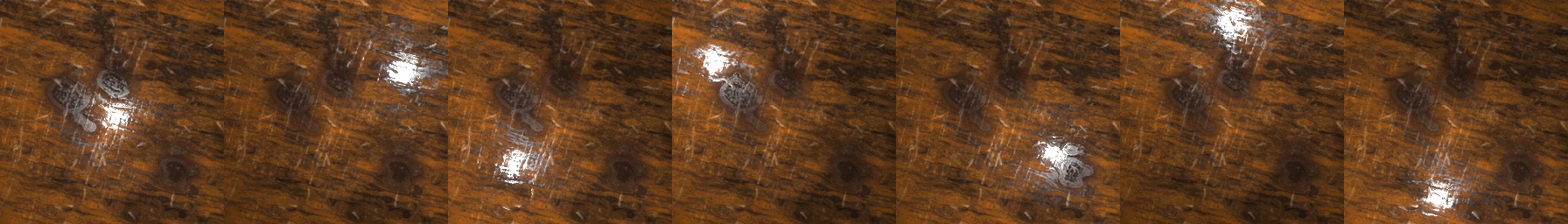

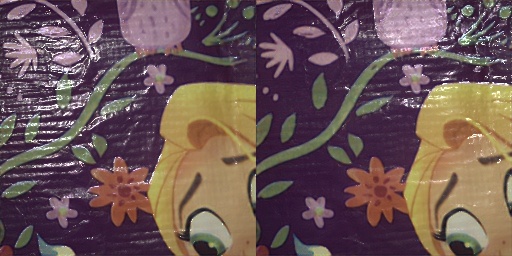

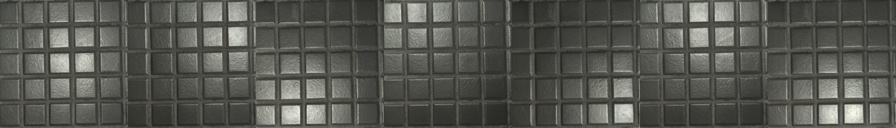

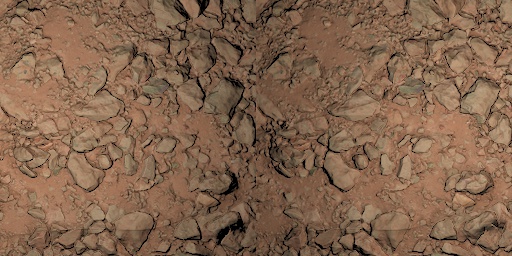

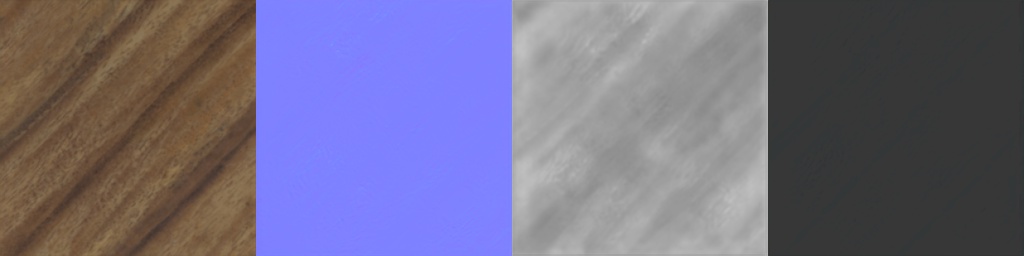

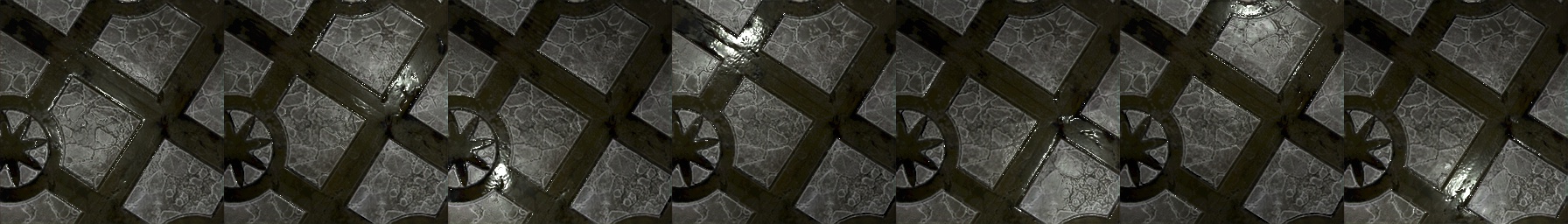

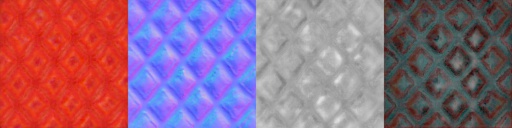

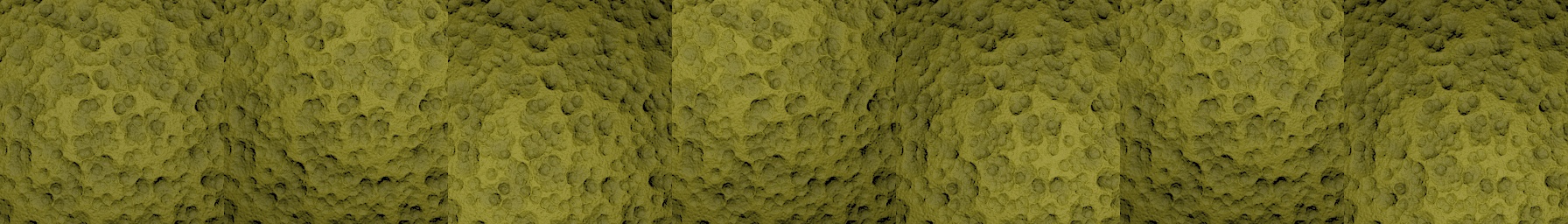

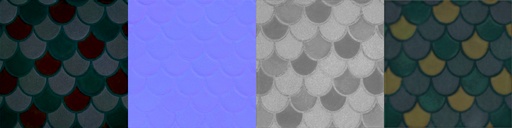

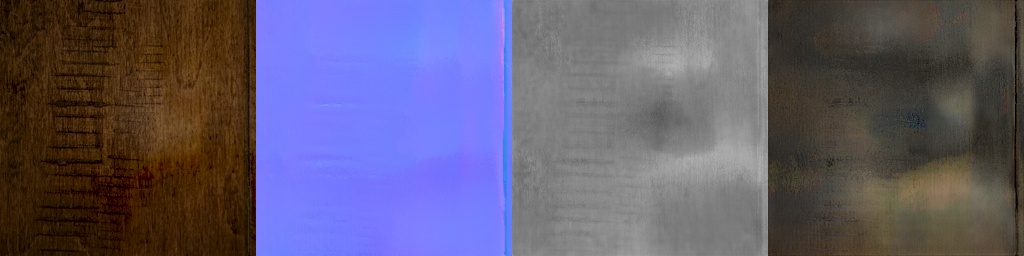

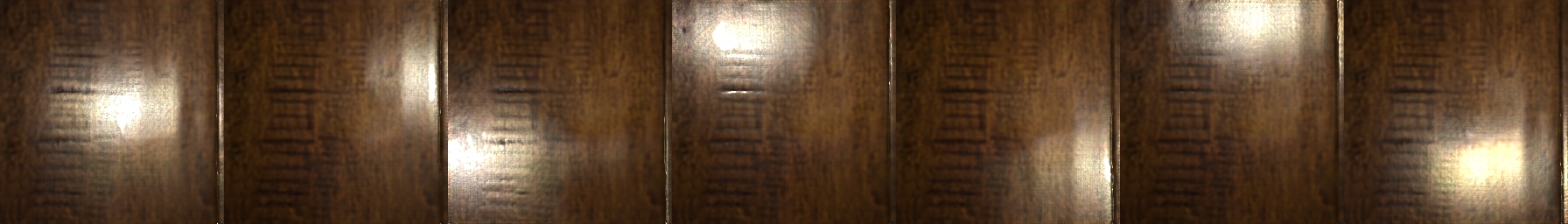

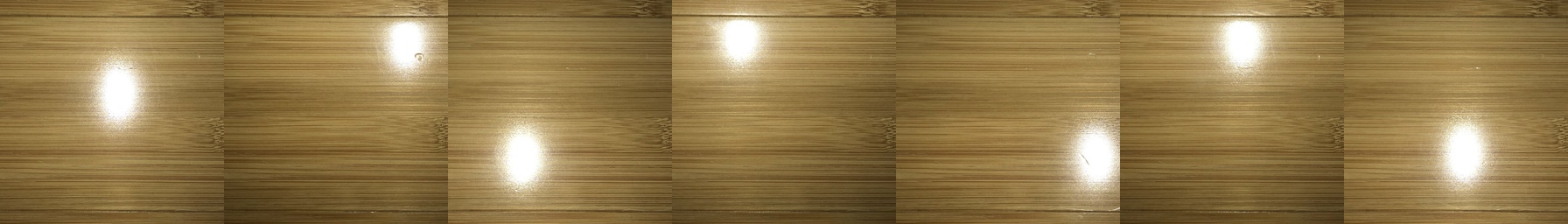

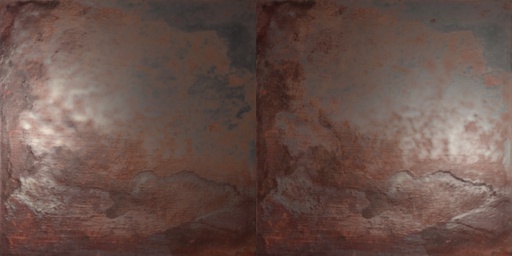

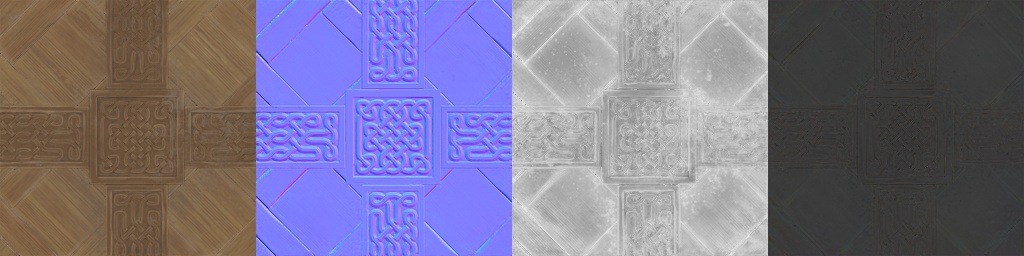

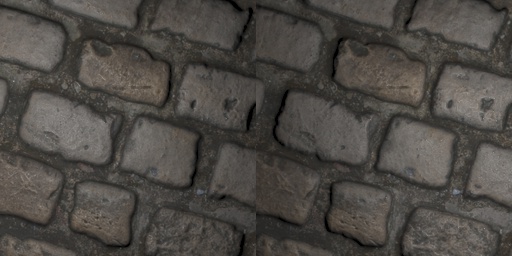

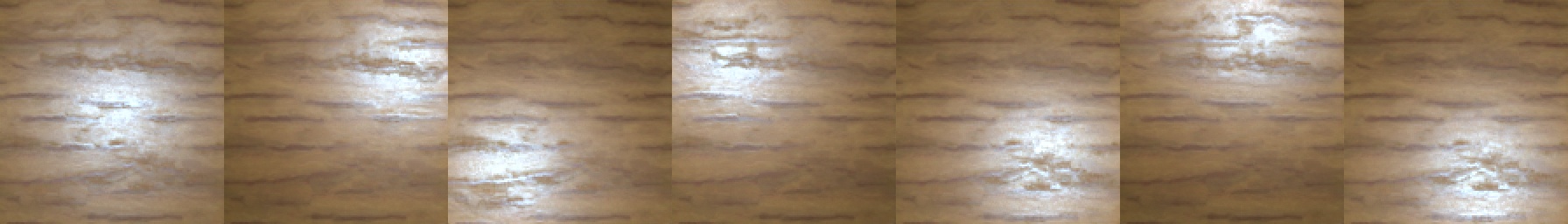

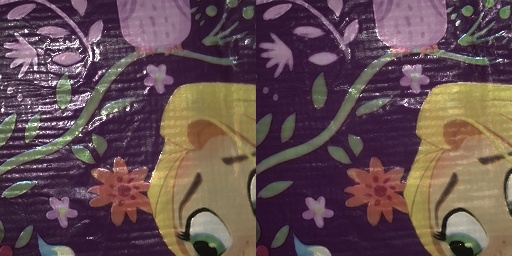

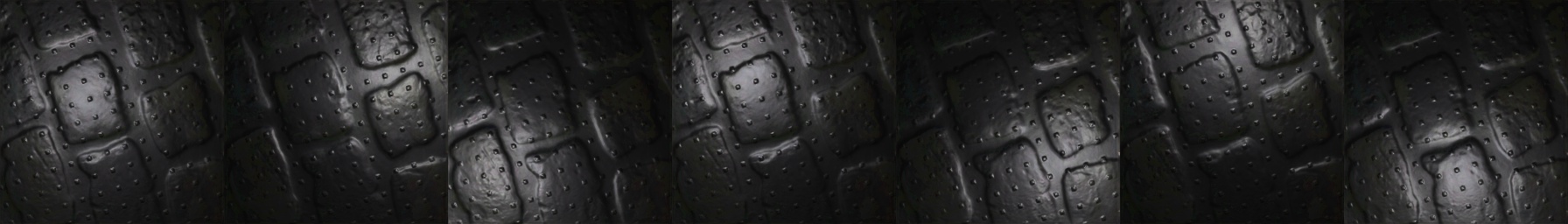

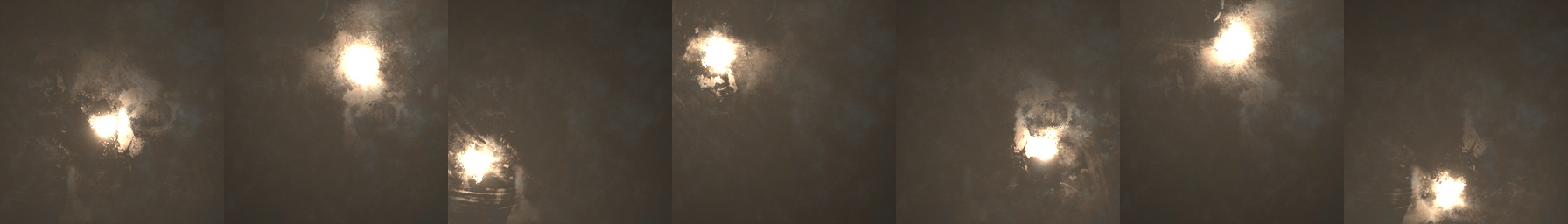

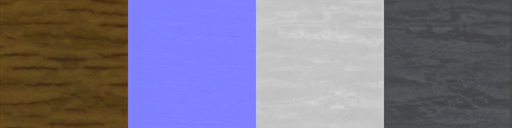

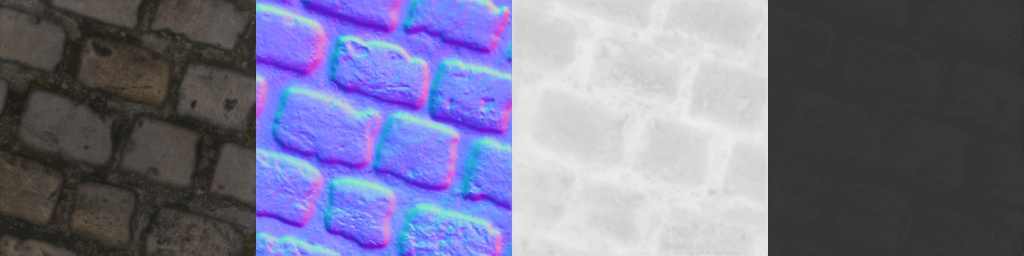

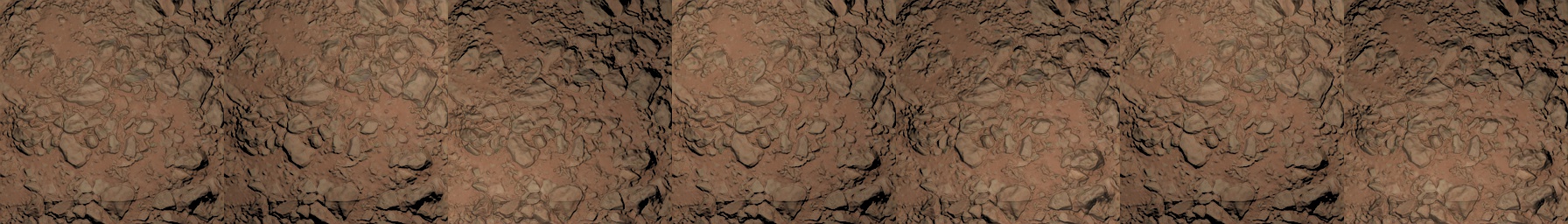

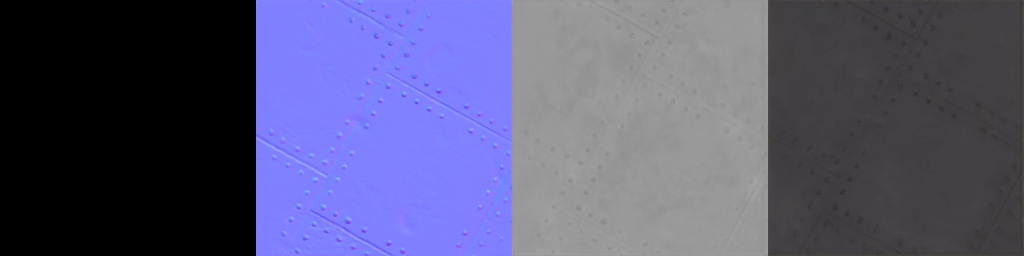

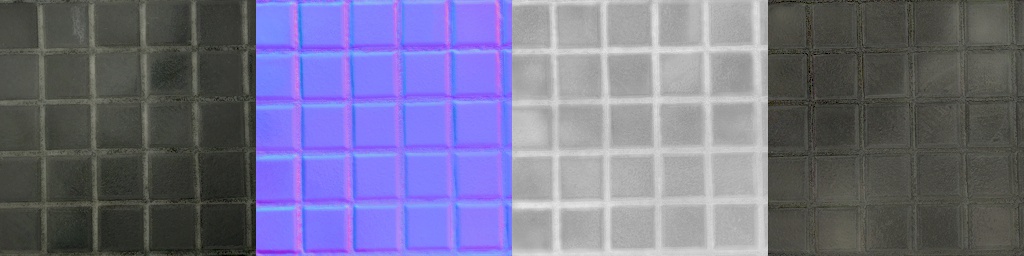

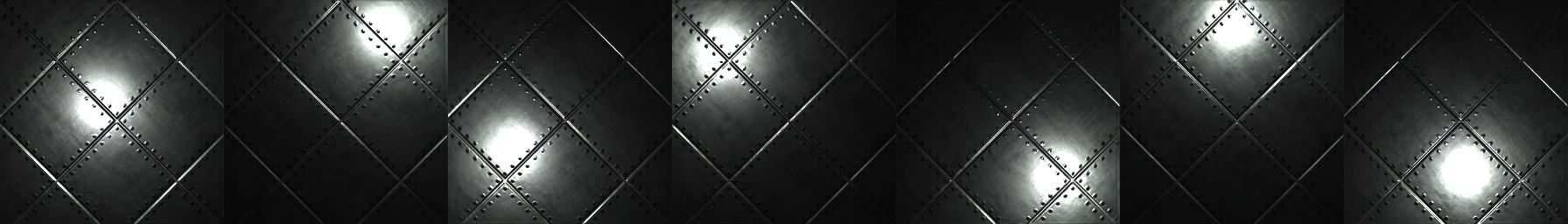

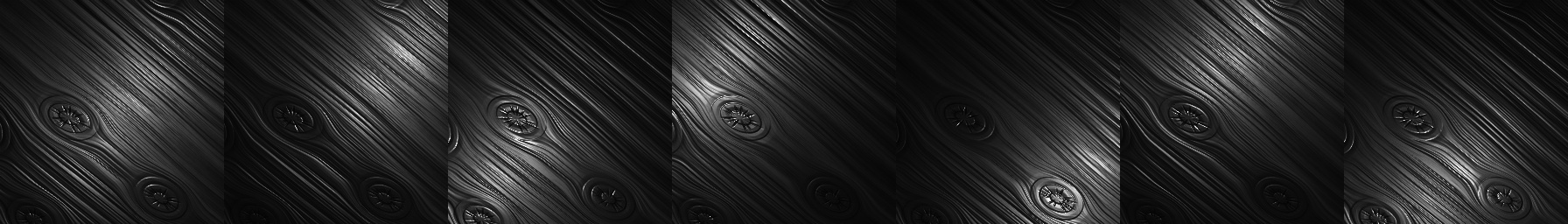

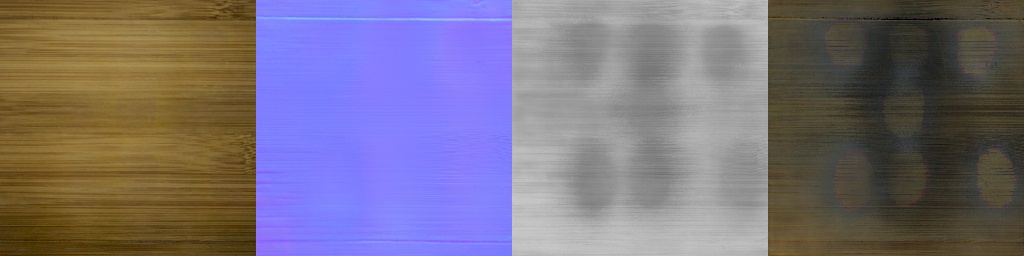

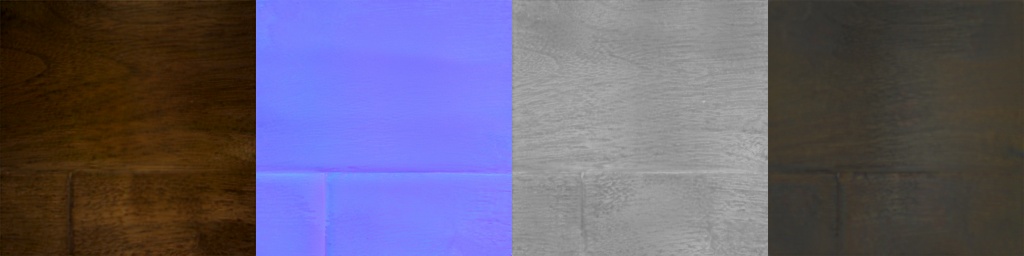

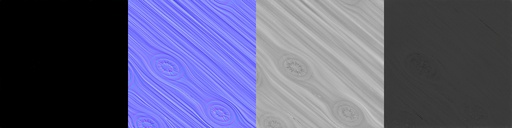

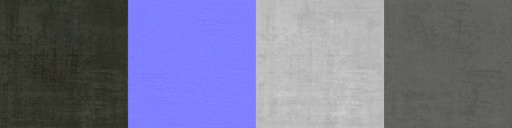

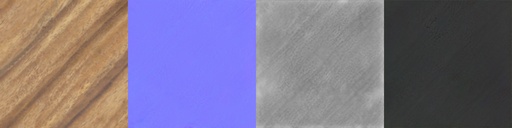

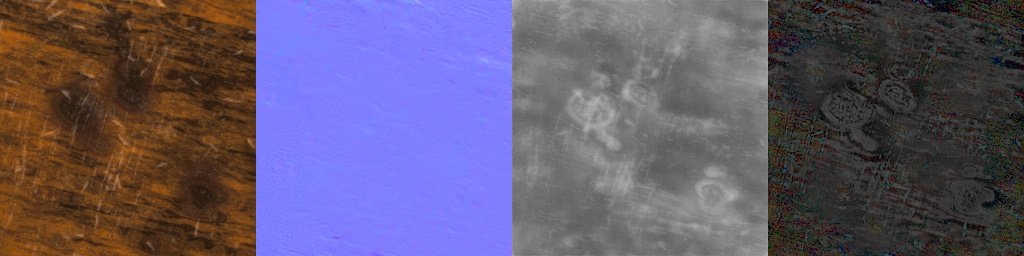

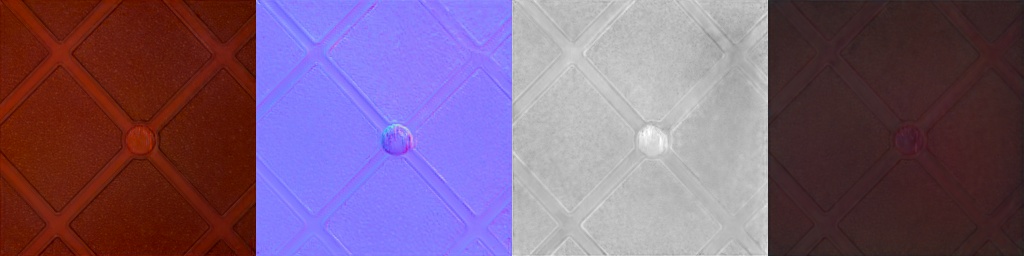

| SVBRDF maps | Photos/Renderings | Photos/Renderings (novel) |
| Groundturth |
 |
 |
 |
|
| [Deschaintre19] |
 |
 |
 |
|
|
| [Gao19] |
 |
 |
 |
|
| RMSE: 0.027 | RMSE: 0.024 | RMSE: 0.052 | RMSE: 0.081 | |
LPIPS:
0.081 |
| Ours |
 |
 |
 |
|
| RMSE: 0.009 | RMSE: 0.012 | RMSE: 0.034 | RMSE: 0.014 | |
LPIPS:
0.018 |
|
| [Gao19]+ |
 |
 |
 |
|
| RMSE: 0.024 | RMSE: 0.015 | RMSE: 0.099 | RMSE: 0.068 | |
LPIPS:
0.064 |
| Ours+ |
 |
 |
 |
|
| RMSE: 0.009 | RMSE: 0.010 | RMSE: 0.027 | RMSE: 0.017 | |
LPIPS:
0.012 |
